Texas Instruments TPS25868Q1EVM-162 Evaluation Module (EVM)

Texas Instruments TPS25868Q1EVM-162 Evaluation Module (EVM) is designed to help evaluate TI’s TPS25868-Q1 USB Type-C® and type-A ports. These ports can provide up to 5.6A output current, 2.4A for Type-A port, and 3A for Type-C port, plus 200mA for output. The Texas Instruments TPS25868Q1EVM-162 operates over a range from 5.5V to 26V and withstands 40V transient voltage. Resistors can adjust the switching frequency on the evaluation module.

Features

5.5V to 26V input range, 2.4A continuous output current buck converter for Type-A port, and 3A for Type-C port
200mA capability for OUT pin, 200mA capability for VCONN power meeting for USB3.1 power requirement
Forced PWM operation with Spread-Spectrum dithering at 200kHz–800KHz
Fully AEC-Q100 qualified

Smart thermal management
USB battery charging specification Rev. 1.2 DCP mode, divider3 mode, Samsung 1.2V mode, and USB Type-C Rev. 1.3 compliant
User-programmable VBUS current limit and internal VCONN current limiting

Applications

Automotive
- USB media hubs
- USB charging ports
- Aftermarket dual USB chargers

Texas Instruments TPS25868Q1EVM-162 Evaluation Module (EVM)

Features

Applications

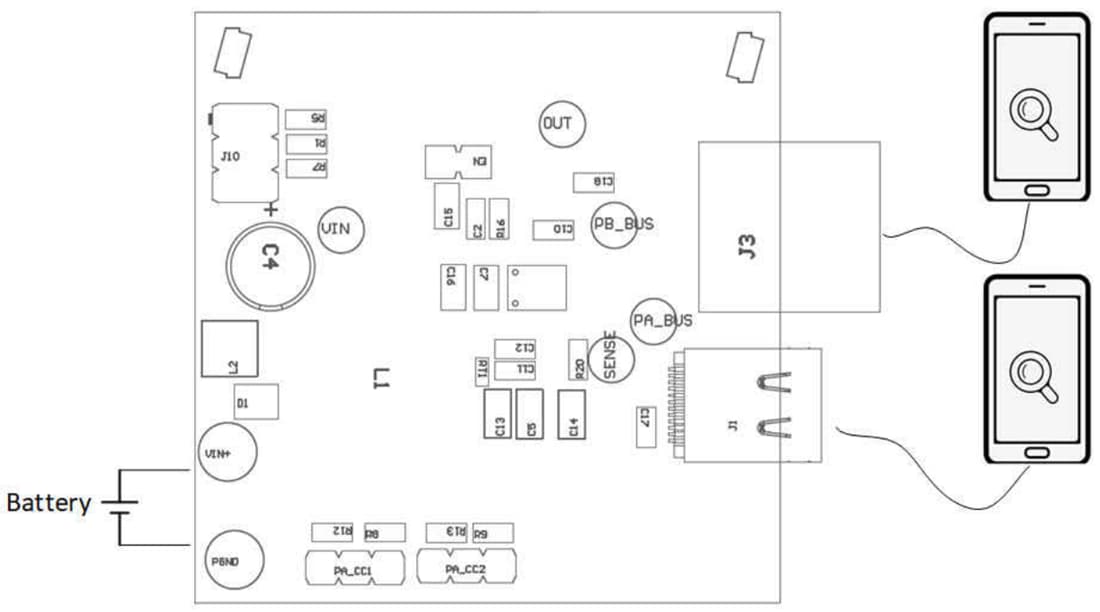

Board Setup
