Texas Instruments TPS25858Q1EVM-140 Evaluation Module

Texas Instruments TPS25858Q1EVM-140 Evaluation Module is configured to evaluate the operation of the TPS25858-Q1. The TPS25858-Q1 USB Type-C™ and BC1.2 dual type-C ports can provide up to 6.6A output current, 3A for each port with cable compensation.

The Texas Instruments TPS25858Q1EVM-140 Evaluation Module operates over a range from 5.5V to 26V and withstands 40V transient voltage. Resistors can adjust the value of cable compensation, current limit, output voltage, and switching frequency on the evaluation module.

Features

  • 5.5V to 26V (40V Abs Max) input range current mode control DC-DC converter
  • ±10% current sense accuracy (IOUT = 2.8A) for precision cable droop compensation
  • USB battery charging specification Rev. 1.2 and Type-C Rev. 1.3 compliant
  • Thermal management with NTC function
  • User-programmable VBUS current limit and internal VCONN current limiting
  • AEC-Q100:
    • Temperature Grade 1
    • HBM and CDM ESD

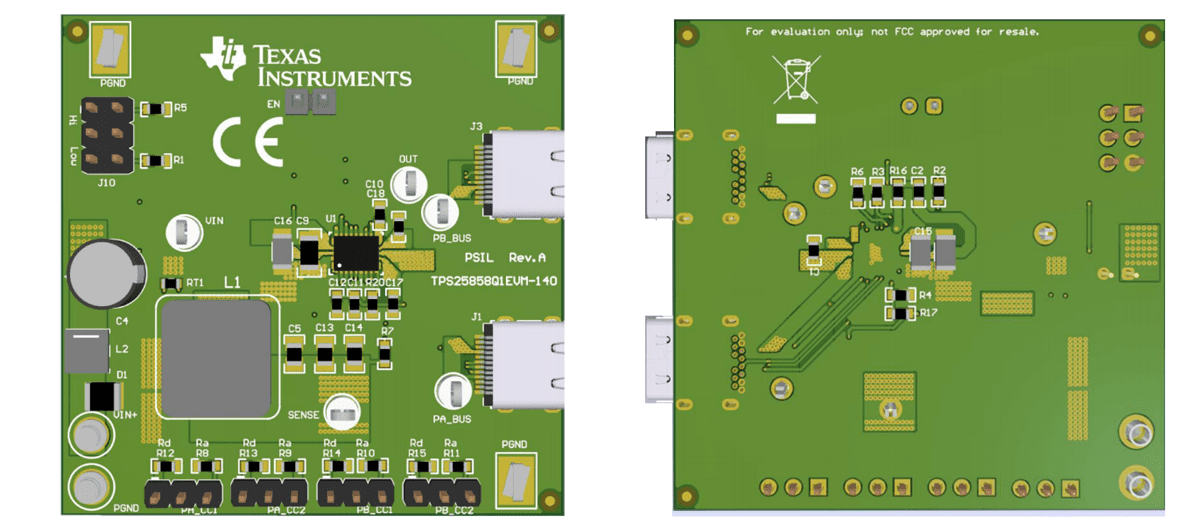

Layout
