Texas Instruments TPS25814EVM Controller Evaluation Module (EVM)

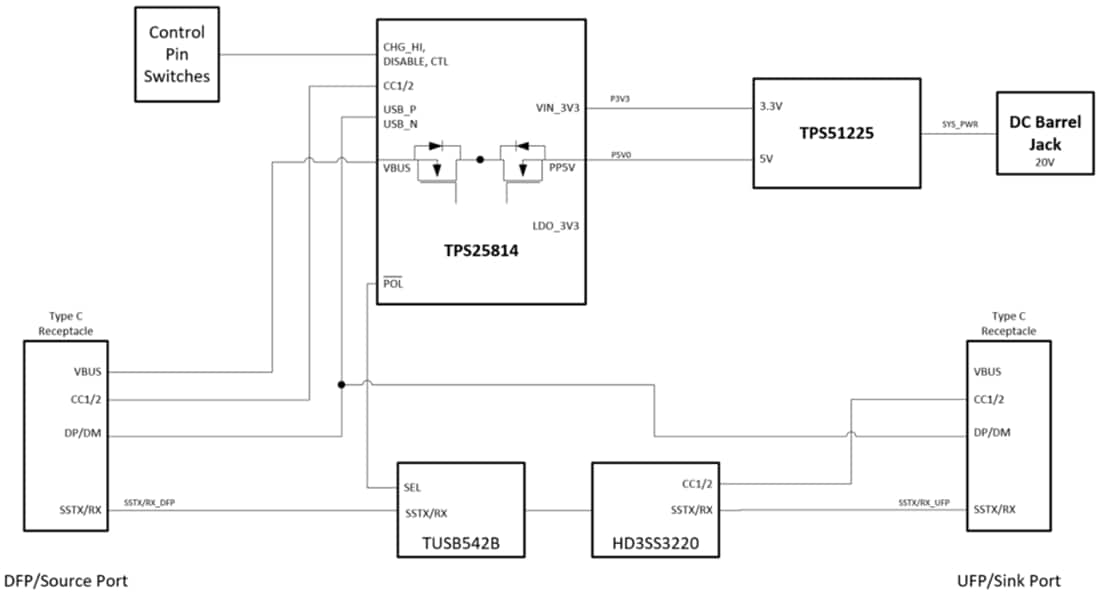

Texas Instruments TPS25814EVM Controller Evaluation Module (EVM) is designed to help evaluate the TPS25814. The TPS25814 is a stand-alone USB Type-C port controller providing cable plug and orientation detection at the USB Type-C connector. When cable detection is complete, the TPS25814 enables the internal 5V power path and configures external multiplexers and alternate mode settings. The Texas Instruments TPS25814EVM is powered by a 20V DC barrel jack connection or 20V bench supply. This 20V input supply is regulated to 5V and 3.3V using the TPS51220. The TUSB542 and HD3SS3220 route the USB SS lanes from the DFP port to the UFP port, allowing users to evaluate a USB 3.0 data solution.
