Texas Instruments TPS25772Q1EVM-150 Power Delivery Evaluation Module

Texas Instruments TPS25772Q1EVM-150 Power Delivery Evaluation Module (EVM) is an evaluation module for the TPS25772-Q1. The TPS25772-Q1 is a highly integrated USB Type-C™ Power Delivery (PD) controller for dual-port USB applications, including charging only and charging with USB 2.0 or USB 3.0 data. The Texas Instruments TPS25772Q1EVM-150 supports dual-port charging with USB 2.0 data.

Features

TPS25772-Q1 integrated buck-boost four power switches support up to 65W USB PD output power
Includes TPS55288-Q1 for port B with full Type C plus PD support
Includes TUSB4041I-Q1 to support charging with USB 2.0 data

CC1, CC2, DP, and DM supports short-to-V_BAT and V_BUS Protection; V_BUS supports short-to-V_BAT and GND protection
Supply voltage and temperature-dependent power management
Intelligent power sharing across charging ports

Required Equipment

TPS25762/72-Q1 datasheet
TPS25762/72-Q1 evaluation module (TPS25772Q1EVM)
TPS25762/72-Q1 configuration tool
5.5V to 18V DC power supply

Passive USB Type-C E-Marker cables
USB Type-A to USB Micro-B cable
Notebook with USB 2.0 capabilities

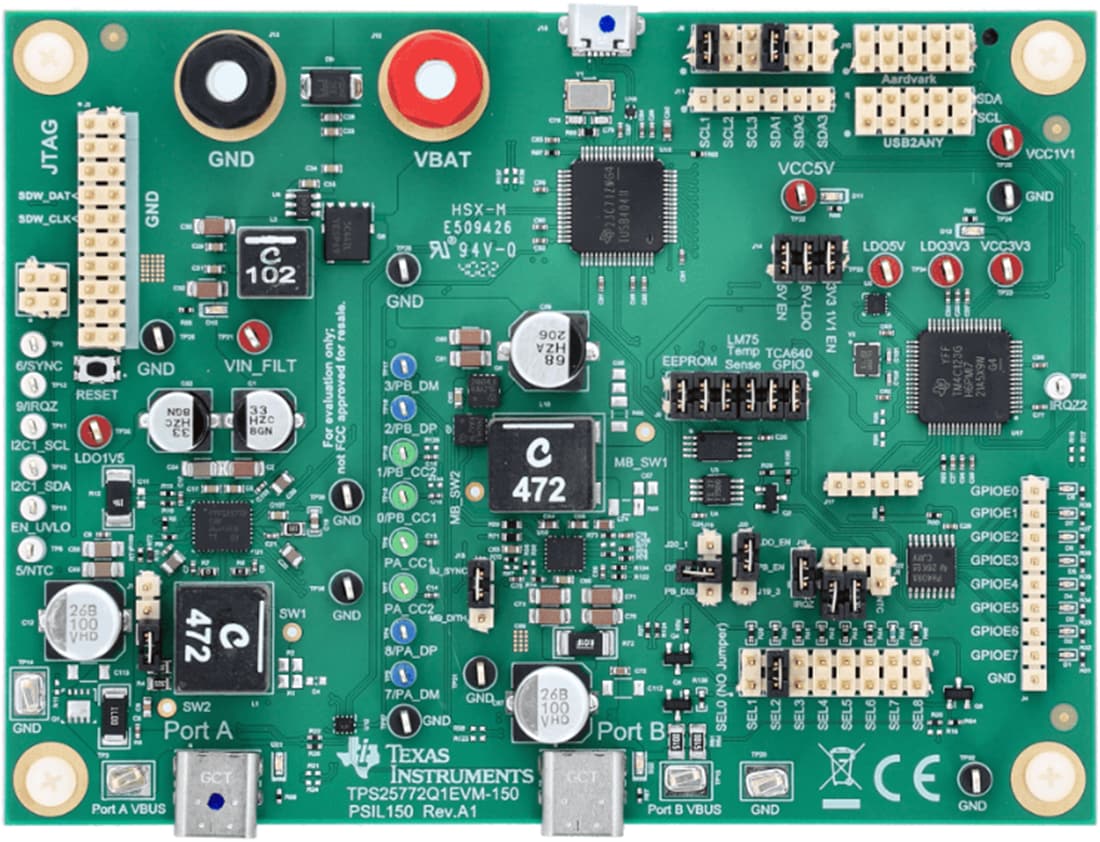

Board Layout

Mechanical Drawing - Texas Instruments TPS25772Q1EVM-150 Power Delivery Evaluation Module
