Texas Instruments TPS25772-Q1 Automotive Dual-Port PD Controller

Texas Instruments TPS25772-Q1 Automotive Dual-Port USB Type-C^™ PD Controller offers an integrated buck-boost converter for automotive dual USB port applications. The TI TPS25772-Q1 functionality includes an integrated buck-boost converter with four power switches, an Arm® Cortex®-M0, and a USB port controller with Type-C cable plug and orientation detection. Additionally, the device incorporates a USB Battery Charging Specification Version 1.2 (BC1.2) detection, USB Endpoint PHY, device power management and supervisory circuitry, connector pin protection, over-voltage, and short-circuit protection.

An intelligent System Policy Manager maximizes provided USB power while protecting the system from automotive battery transient and over-temperature conditions.

Features

AEC-Q100 qualified with the following results:
- Device temperature grade 1 of -40°C to +125°C ambient operating temperature range
- Device HBM ESD classification level 2
- Device CDM ESD classification level C2b
- Enhanced connector pin ESD protection
USB Power Delivery (PD) controller with Programmable Power Supply (PPS) support
- Wide V_IN of 5.5V to 18V (40V maximum)
- Integrated buck-boost four power switches supporting up to 65W USB PD output power
- V_BUS output: 3V to 21V with ±20mV step size
- I_BUS output: 0A to 3A with ±50mA current limit step size
- V_BUS short circuit to VBAT and GND protection
- V_BUS cable droop compensation
- MFi overcurrent protection
- Switching frequency of 300kHz, 400kHz, 450kHz
- DC/DC sync in/out with dithering
USB port configuration options
- 1 USB-PD Port (TPS25762-Q1)
- 2 USB-PD Ports (TPS25772-Q1)

Compliant to USB
- USB Type-C Power Delivery Rev 3.1
  - CC logic, V_CONN source, and discharge
  - USB cable polarity detection
- Battery charging specification rev 1.2
  - DCP: Dedicated Charging Port
Legacy Fast Charging
- 2.7V divider-3 mode
- 1.2V divider mode
- High voltage DCP protocol
Microcontroller core allows
- Firmware updates
- Supply voltage and temperature-dependent power management
Short to V_BUS and V_BAT protection
- V_BUS
- Px_ DP and Px_DM
- Px_CC1 and Px_CC2

Applications

Automotive USB charge
Automotive media hub

Automotive head unit
Automotive rear seat entertainment

Texas Instruments TPS25772-Q1 Automotive Dual-Port PD Controller

Features

Applications

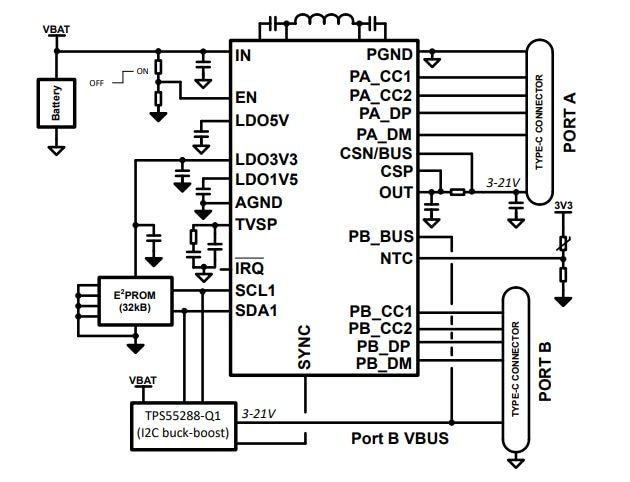

Typical Application

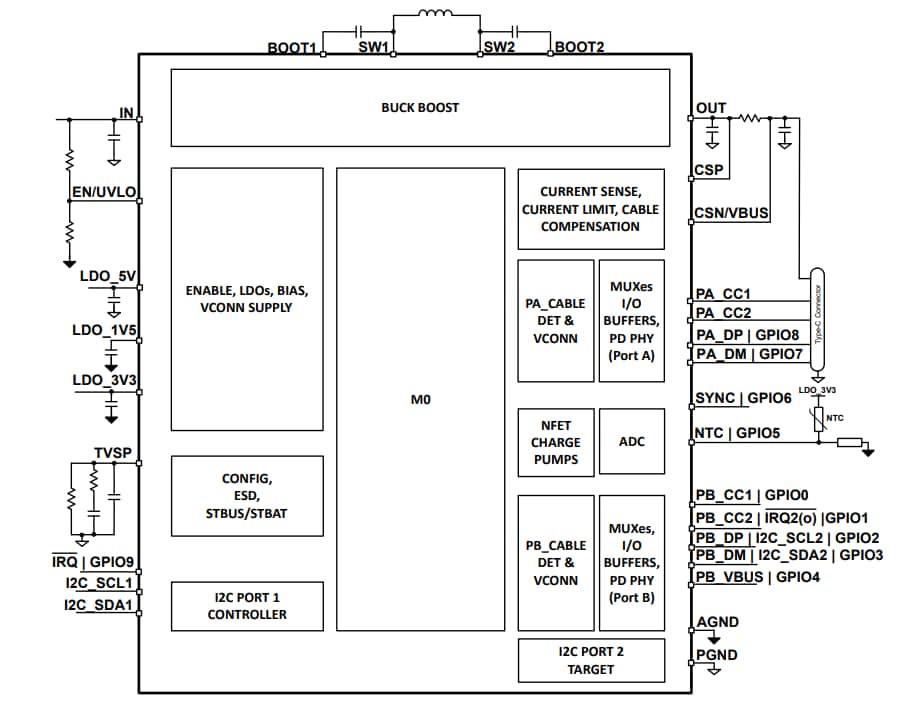

Block Diagram
