Texas Instruments TPS25762/72-Q1EVM Evaluation Modules

Texas Instruments TPS25762/72-Q1EVM Evaluation Modules are designed to facilitate the evaluation of the TPS25762-Q1 and TPS25772-Q1 ICs. The TPS25762/72-Q1 are highly integrated USB Type-C™ Power Delivery (PD) controller for use in single USB port applications. The TPS25762/72-Q1EVM support dual ports charging only (TPS25772Q1EVM-149) and single port charging only (TPS25762Q1EVM-146).

The TI TPS25762/72-Q1EVM evaluation modules integrate the TIVA microcontroller and HUB IC. These enable online debugging, online updating EEPROM, and dual ports USB 2.0 data. Additionally, the EVM integrates some peripherals to implement multiple functions of TPS25762/72-Q1, such as a temperature sensor, IO expander, and digital potentiometer.

Features

TPS25762-Q1 integrated buck-boost four power switches support up to 65W USB PD output power
CC1, CC2, DP, DM supports short-to-V_BAT and V_BUS Protection; V_BUS supports short to V_BAT and GND protection

Supply voltage and temperature-dependent power management
USB Type-C Power Delivery Rev 3.1 and battery charging specification rev 1.2 compliant

Required Equipment

TPS25762/72-Q1 datasheet
TPS25762/72-Q1 EVM
TPS25762/72-Q1 Configuration tool
5.5V~18V DC power supply

Passive USB Type-C E-Marker cables
USB Type-A to USB Micro-B cable
Notebook with USB 2.0 capabilities

Texas Instruments TPS25762/72-Q1EVM Evaluation Modules

Features

Required Equipment

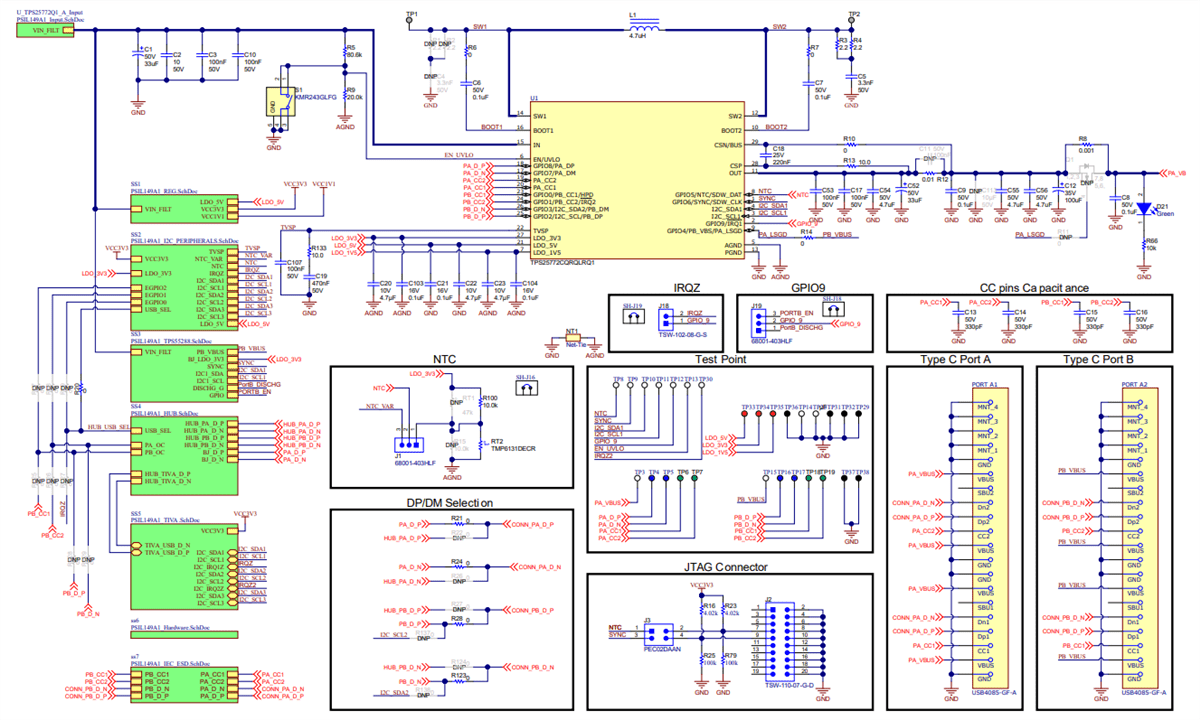

TPS25772Q1EVM-149 Main Schematic

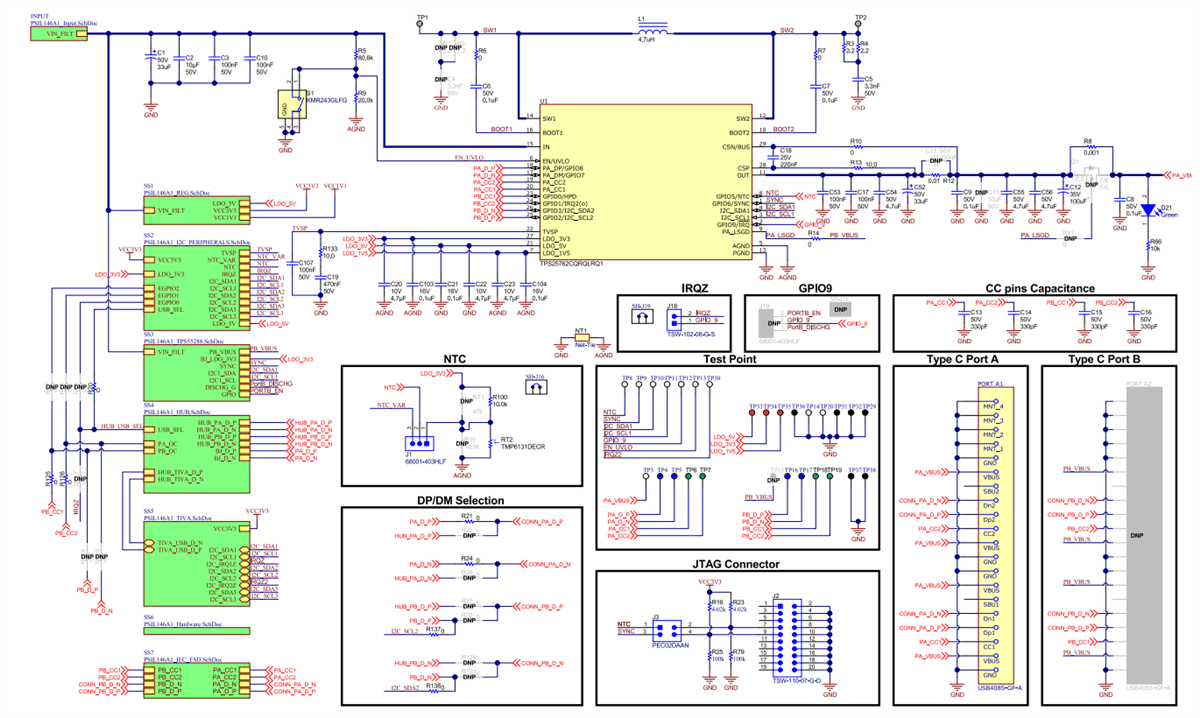

TPS25762Q1EVM-146 Main Schematic
