Texas Instruments TPS23882B1EVM-008 Controller Daughterboard

Texas Instruments TPS23882B1EVM-008 Controller Daughterboard features the TPS23882B1. The TPS23882B1 is an 8-channel, IEEE802.3bt compliant PoE PSE controller. The user will be required to have a motherboard (BOOST-PSEMTHR8-097 purchased separately) and a daughterboard (TPS23882B1EVM-008) containing one TPS23882B1 device to evaluate the TPS23882B1. The Texas Instruments TPS23882B1EVM-008 provides a multi-port base platform interface for MSP-EXP430FR5969 (LaunchPad™) and USB2ANY (USB Interface Adapter).

Features

Eight IEEE802.3bt 2-pair ports with 1000BASE-T (gigabit Ethernet data pass-through)
Single DC power supply input
Onboard 3.3V regulator
Onboard I²C interface to the TPS23882B1 device from either USB2ANY or MSP-EXP430FR5969

Port ON status LEDs
Reset button for easy reconfiguration
User test points

Applications

Enterprise and SoHO switches and routers
Connected ceiling LED switches
PoE pass-through power modules

Network video recorders (NVRs)
Wireless backhaul and small-cell networking

Texas Instruments TPS23882B1EVM-008 Controller Daughterboard

Features

Applications

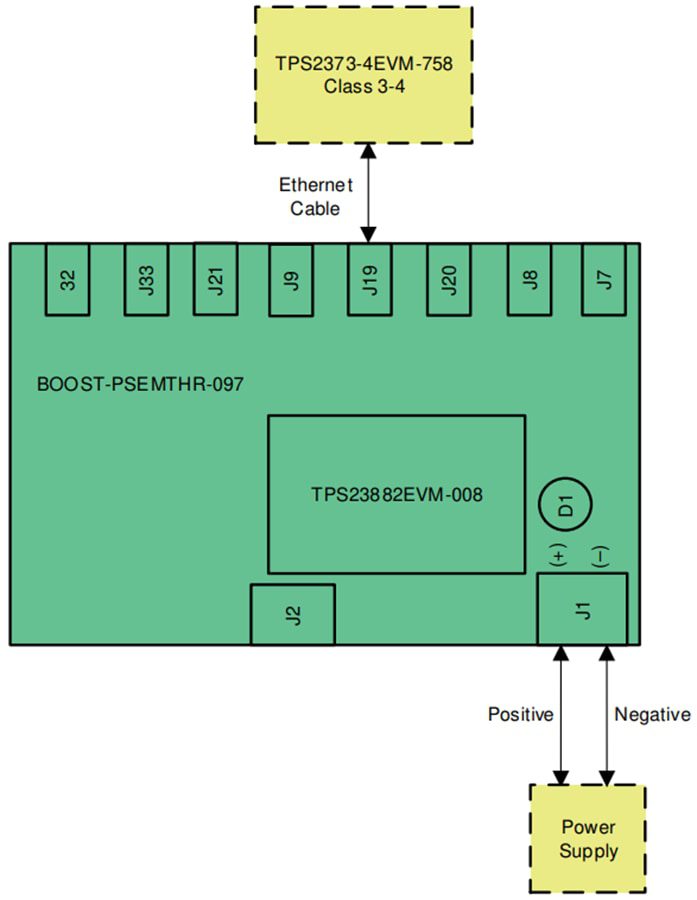

Setup Using Autonomous Mode

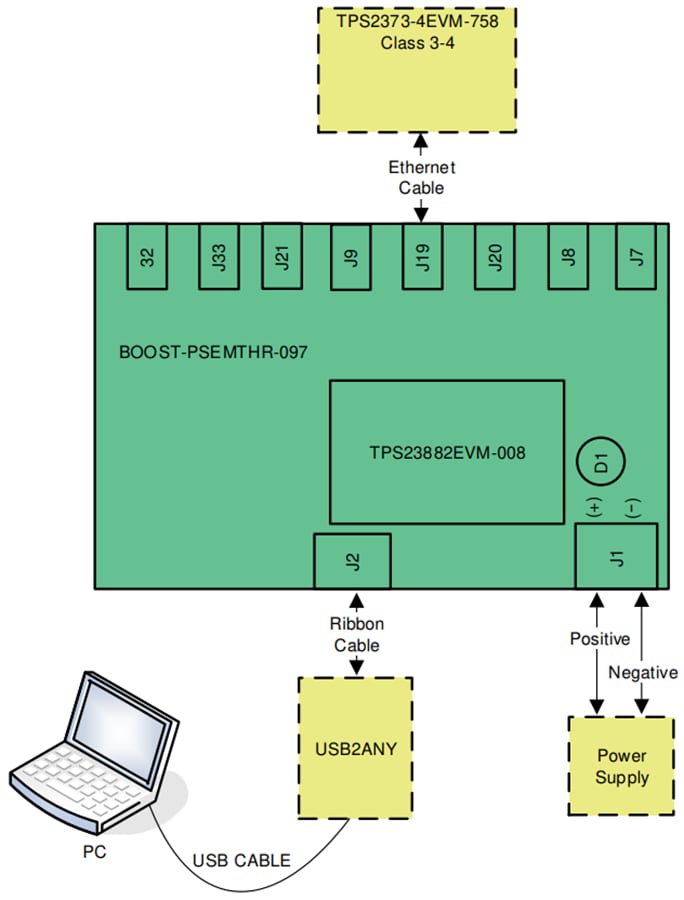

Setup Using USBANY

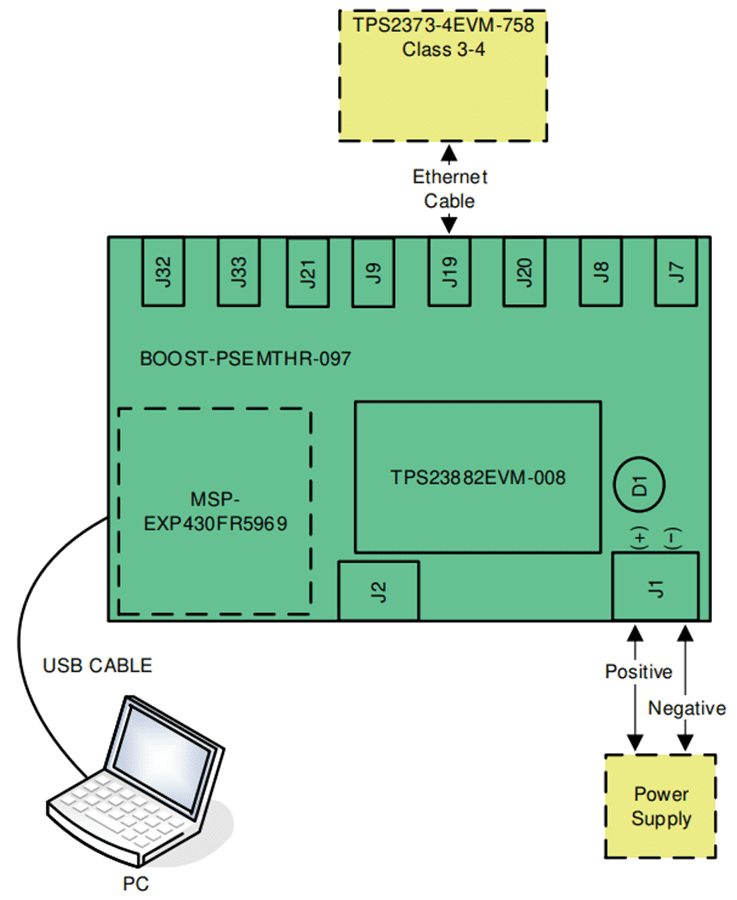

Setup Using LaunchPad™
