Texas Instruments TPS22995 On-Resistance Load Switches

Texas Instruments TPS22995 On-Resistance Load Switches allow a configurable rise time to minimize inrush current. The single-channel load switches contain an N-channel MOSFET that can operate over an input voltage range of 0.4V to 5.5V and supports a maximum continuous current of 3.8A.

The TI TPS22995 switches are controlled by an on-and-off input (ON), capable of interfacing directly with low-voltage control signals. The TPS22995 additionally offers a Quick Output Discharge when the switch is turned off, pulling the output voltage down to a known 0V state.

The TPS22995 is housed in two 6-pin WQFN packages with 0.4mm and 0.5mm options. The device is characterized for operation over the free-air temperature range of –40°C to +125°C.

Features

0.4V to 5.5V Input operating voltage range (V_IN)
1.5V to 5.5V Bias voltage supply (V_BIAS)
3.8A Maximum continuous current
18mΩ (typ.) On-resistance (R_ON)
Adjustable slew rate control through an external capacitor
100Ω (typ.) Quick Output Discharge (QOD)
Thermal shutdown

Smart ON pin pulldown (R_PD,ON):
- ON ≥ VIH (I_ON) of 25nA (max.)
- ON ≤ VIL (R_PD,ON) of 500kΩ (typ.)
Low power consumption:
- 10uA (typ.) ON state (I_Q)
- 0.1uA (typ.) OFF state (I_SD)

Applications

Notebook PC
Tablets

Industrial PC
Discrete industrial solutions

Texas Instruments TPS22995 On-Resistance Load Switches

Features

Applications

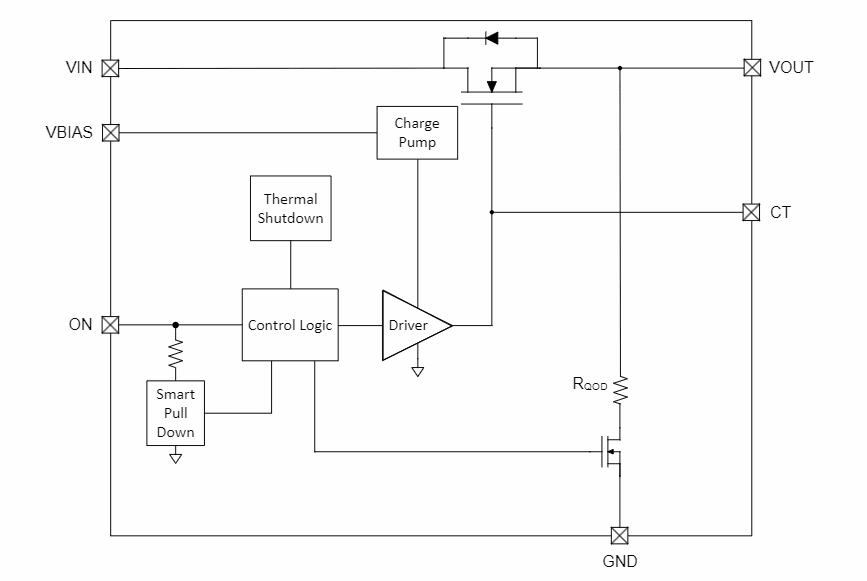

Block Diagram

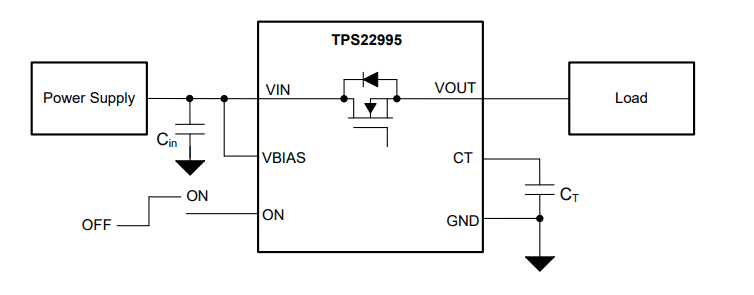

Typical Application Diagram
