Texas Instruments TPS2124EVM-126 Multiplexer Evaluation Module

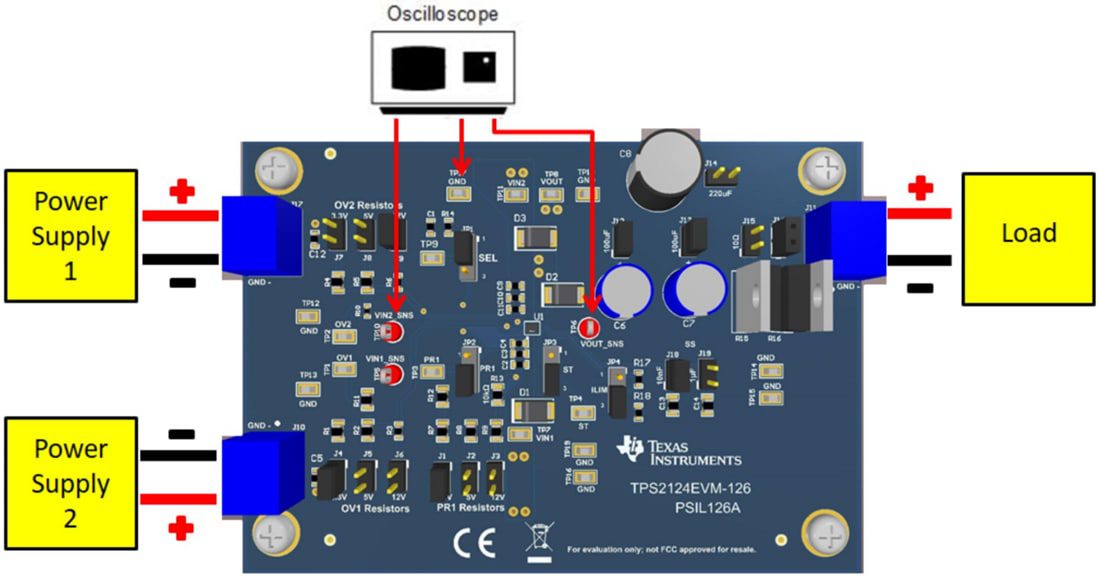

Texas Instruments TPS2124EVM-126 Multiplexer Evaluation Module (EVM) provides convenient access to all critical voltages and pins, and jumpers to configure the different modes of operation of the TPS2124. The TI TPS2124 is a dual input, single-output power multiplexer that will automatically detect, select, and seamlessly transition between available inputs. Active current limiting protects against overcurrent, and always-on reverse current protection blocks reverse current. Priority can be automatically given to the highest input voltage or manually assigned to a lower voltage to support both ORing and Source Selection Operation.
