Texas Instruments TPS1HTC30EVM Evaluation Module

Texas Instruments TPS1HTC30EVM Evaluation Module is implemented for hardware engineers to evaluate the complete performance and functionality of the TPS1HTC30-Q1 automotive high-side switch. The TI TPS1HTC30EVM board offers a seamless way to connect a power supply to the input of the TPS1HTC30-Q1. Additionally, the board connects a load to the output channel and switches on and off the device using the control pins of the chip itself.

The TI TPS1HTC30EVM Evaluation Module integrates protection features such as thermal shutdown, output clamp, and current limit.

Features

Standalone operation with standard bench equipment
Wide operating voltage range of 6V to 48V
64V DC tolerance when disabled
Low R_ON of 30mΩ typ, 55mΩ max
Potentiometer for SNS resistor, allowing for easy configuration of external resistance values
Improve system level reliability through adjustable current limiting with a current limit from 2A to 16A
Accurate current sensing of ±4% at 1A in standard mode
Integrated inductive discharge clamp >65V

Low standby current of <0.5μA
Low quiescent current (I_q) of < 2mA
Functional safety capable
Operating junction temperature of -40 to 125°C
Input control, 1.8V, 3.3V and 5V logic compatible
Integrated fault sense voltage scaling for ADC protection
Open-load detection in off-state
Thermal shutdown/swing detection
14-Pin Thermally-enhanced TSSOP package

Kit Contents

1x TPS1HTC30EVM
1x EVM Disclaimer Read Me

Texas Instruments TPS1HTC30EVM Evaluation Module

Features

Kit Contents

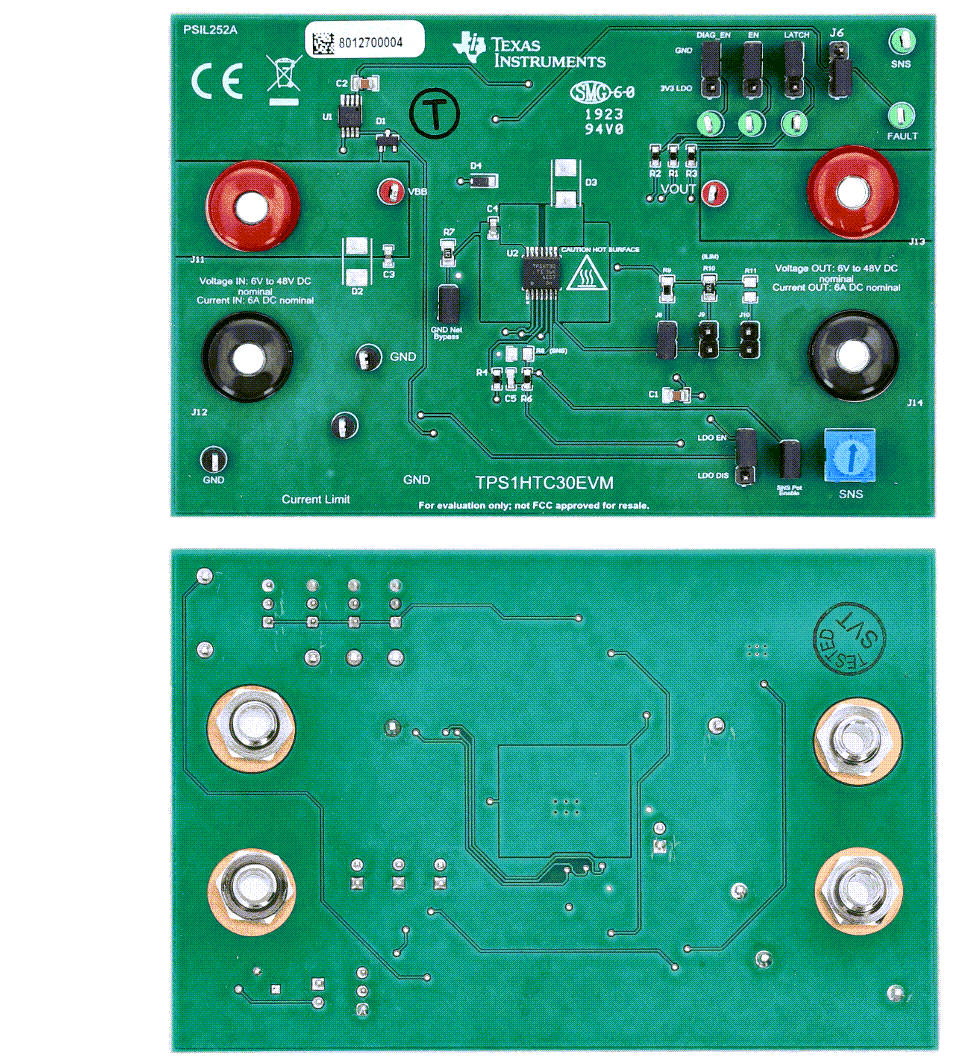

Layout
