Texas Instruments TPA3223EVM Evaluation Module

Texas Instruments TPA3223EVM Evaluation Module demonstrates the TPA3223 pad-up integrated circuit. The TPA3223EVM is a complete reference design for the TPA3223, ready for evaluation and exceptional listening. The TPA3223 mono HD analog-input, Class-D amplifier provides an efficient operation at full power, idle, and standby. The TPA3223 has closed-loop feedback allowing low distortion across the audio band and delivering excellent sound quality. The TPA3223 operates in AD modulation and drives up to 2 x 200W into 4Ω load or 1 x 400W into 2Ω load.

The TI TPA3223EVM features adjustable gain settings from 20dB to 36dB, allowing flexible input signals with 1V_rms to 2V_rms single-ended/differential analog input interface. The device supports 2 x BTL (stereo) output channel or 1 x PBTL (mono) output channel configurations.

Features

Stereo HD Audio evaluation module
Device-integrated support for Single-Ended (SE) and Differential analog input signals

Integrated protection system (short circuit, clip, and thermal)
BTL and PBTL output configurations supported
Convenient XLR input connections for differential input

Required Equipment

TPA3223EVM
Power supply 5A to 14A, 12V_DC to 45V_DC
Two 3Ω to 8Ω speaker or resistor loads (make sure that speaker/load is appropriately sized for required wattage output)

Four speakers, banana cables
Four XLR or two RCA input cables
Analog output audio source

Texas Instruments TPA3223EVM Evaluation Module

Features

Required Equipment

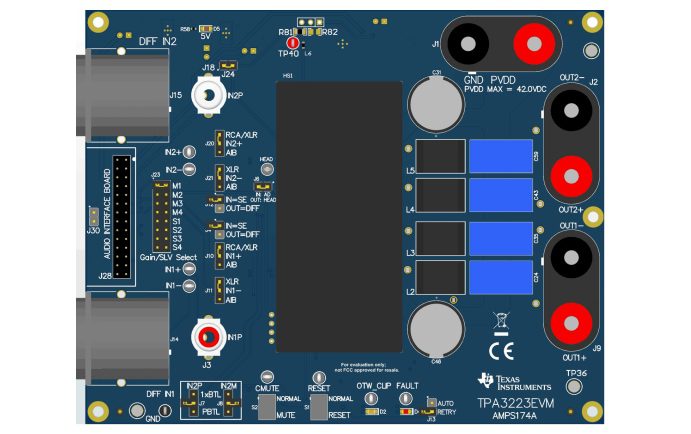

Connectors & Jumpers

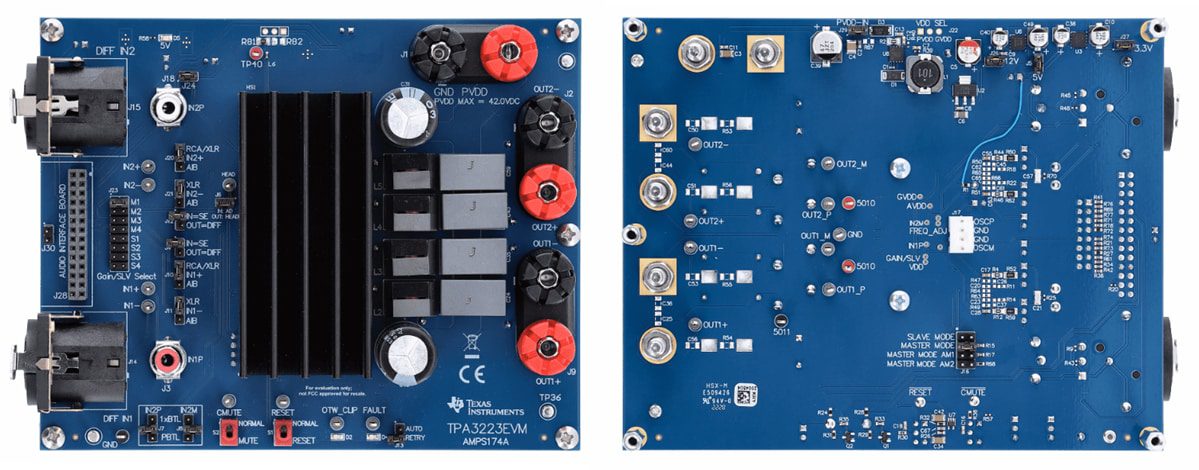

PCB Layout
