Texas Instruments TMUX9616 220V High Voltage 16-Channel Switch

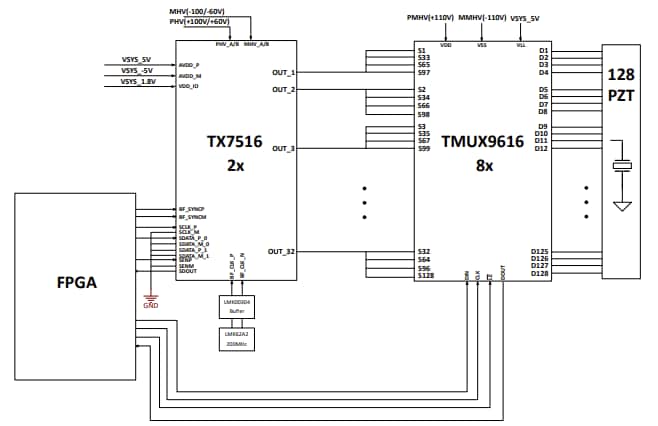

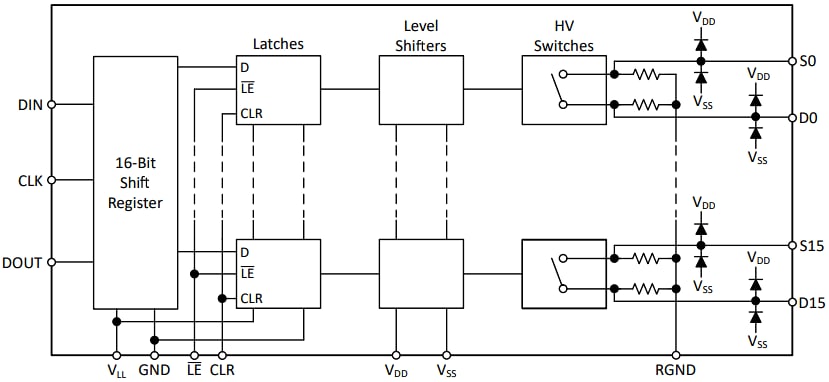

Texas Instruments TMUX9616 220V High Voltage 16-Channel Switch is a low resistance, low capacitance analog switch Integrated Circuit (IC) with latch-up immunity. The module offers 16 independently selectable 1:1, Single-Pole, Single-Throw (SPST) switch channels. The TMUX9616 works well with dual supplies up to ±110V and asymmetric supply biasing is also supported within the recommended supply range. This switch supports bidirectional analog and digital signals on the source (Sx) and drain (Dx) pins ranging from V_SS to V_DD. The integrated bleed resistors on Sx and Dx pins discharge capacitive loads, such as piezoelectric transducers. The TMUX9616 220V high voltage 16-channel switch comes in an industry-standard 7mm x 7mm LQFP package for pin-to-pin compatibility. Typical applications include medical ultrasound imaging, Non-Destructive Testing (NDT) metal flaw detection, and piezoelectric transducer drivers.
