Texas Instruments TMP64/TMP64-Q1 Silicon Linear Thermistors

Texas Instruments TMP64/TMP64-Q1 Silicon Linear Thermistors offer linearity and consistent sensitivity across temperature to enable simple and accurate methods for temperature conversion. Low power consumption and a small thermal mass minimize the impact of self-heating. The TMP64-Q1 devices are AEC-Q100 qualified for automotive applications.

The TMP64/TMP64-Q1 Silicon Linear Thermistors are designed for a long life of high performance with built-in failsafe behavior at high temperatures and powerful immunity to environmental variation.

The small size of the TMP64/TMP64-Q1 series also allows for close placement to heat sources and quick response times. The TMP64/TMP64-Q1 is currently available in a 0402 footprint-compatible X1SON package.

Features

Silicon-based thermistor with a positive temperature coefficient (PTC)
Linear resistance change across the temperature
47kΩ nominal resistance at 25°C (R25)
- ±1% maximum (0°C to 70°C)
Wide operating temperature of -40°C to +125°C

Consistent sensitivity across the temperature
- 6400ppm/°C TCR (25°C)
- 0.2% typical TCR tolerance across the temperature range
Fast thermal response time of 0.6s (DEC)
Long lifetime and robust performance
- Built-in fail-safe in case of short-circuit failures
- 0.5% typical long term sensor drift

Applications

Temperature monitoring
HVAC and thermostats
Industrial control and appliances
Thermal compensation
Display backlights

Building automation
Thermal threshold detection
Motor control
Chargers

Texas Instruments TMP64/TMP64-Q1 Silicon Linear Thermistors

Features

Applications

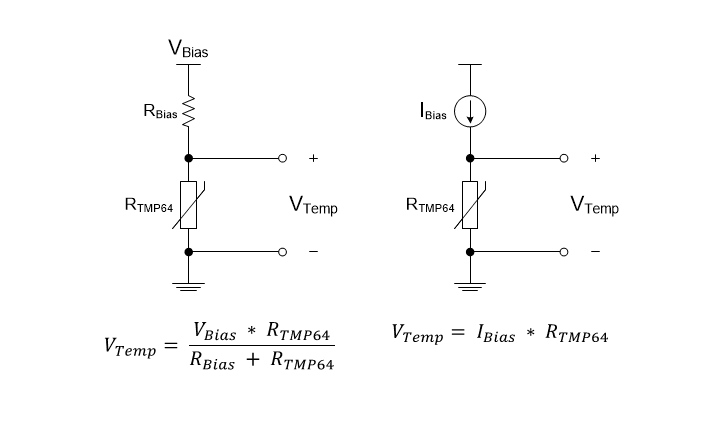

Functional Diagram
