Texas Instruments TMDSCNCD28P65X controlCARD Evaluation Module

Texas Instruments TMDSCNCD28P65X controlCARD Evaluation Module (EVM) is a low-cost evaluation and development board for the TI C2000™ MCU series of F28P65x devices. The module comes with an HSEC180 (180-pin high-speed edge connector) and, as a controlCARD, it is ideal for initial evaluation and prototyping. To evaluate Texas Instruments TMDSCNCD28P65X, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately or as a bundled kit.

Features

Software features
- TI Code Composer Studio IDE – integrated development environment for TI microcontrollers and embedded processors
- Software development kits (SDK)
- C2000Ware – low-level device drivers and examples
- MotorControl SDK – motor control system development for various three-phase motor control applications
- DigitalPower SDK – digital power system development for various AC-DC, DC-DC, and DC-AC power supply applications

Hardware features
- Isolated on-board XDS110 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Standard 180-pin controlCARD HSEC interface
- 2-Port EtherCAT slave controller
- Analog I/O, digital I/O, and JTAG signals at standard 180-pin HSEC interface

Kit Contents

TMDSCNCD28P65X evaluation board
USB Type-A male to USB Type-C™ male cable

Texas Instruments TMDSCNCD28P65X controlCARD Evaluation Module

Features

Kit Contents

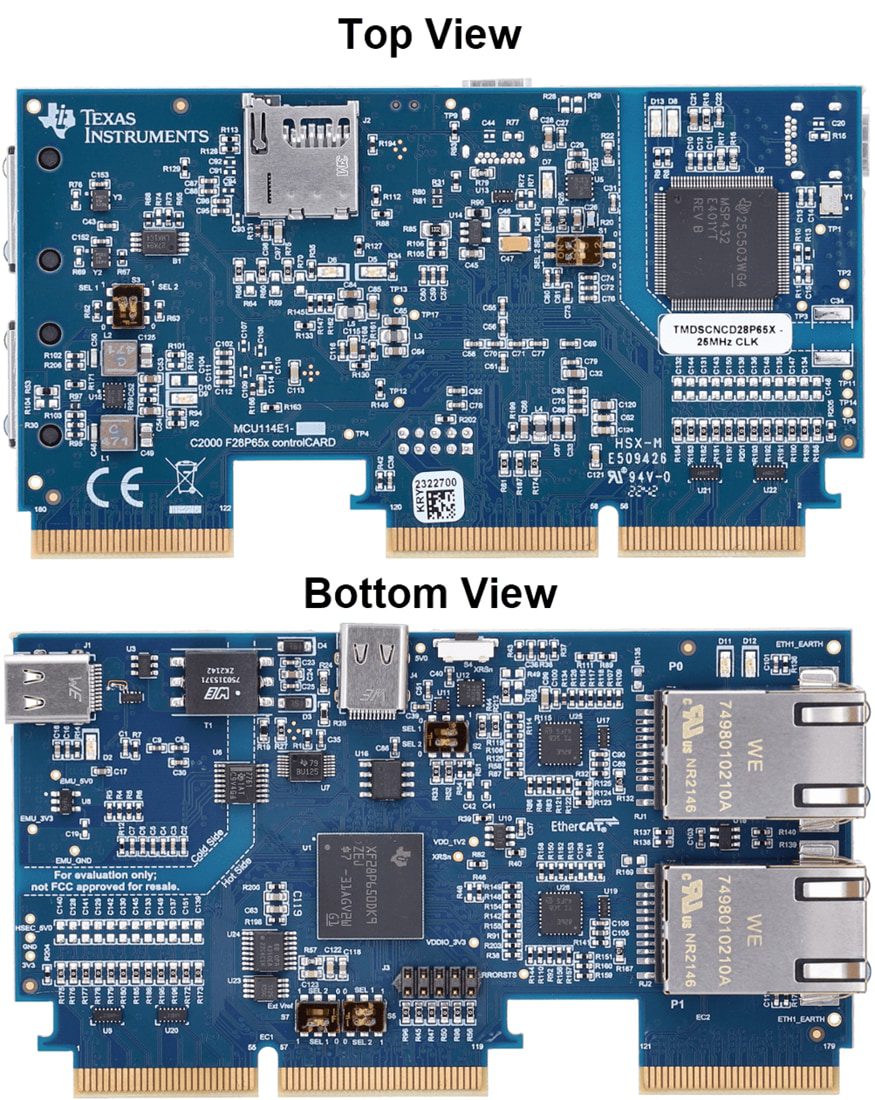

Board Layout
