Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module

Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module (EVM) is a low-cost evaluation and development board for the C2000™ MCU series of F2838xS and F2838xD devices. Texas Instruments TMDSCNCD28388D comes with an HSEC180 (180-pin high-speed edge connector) controlCARD and is ideal for initial evaluation and prototyping. For the evaluation of TMDSCNCD28388D, a 180-pin docking station TMDSHSECDOCK is required and can be purchased separately.

Features

  • Hardware
    • TMDSCNCD28388D – HSEC180 controlCARD
    • Isolated XDS100v2 USB-to-JTAG Debug Probe enables real-time in-system programming and debugging
    • Analog I/O, digital I/O and JTAG signals at standard 180-pin HSEC interface
    • 2-Port EtherCAT Slave Controller
    • Ethernet connector

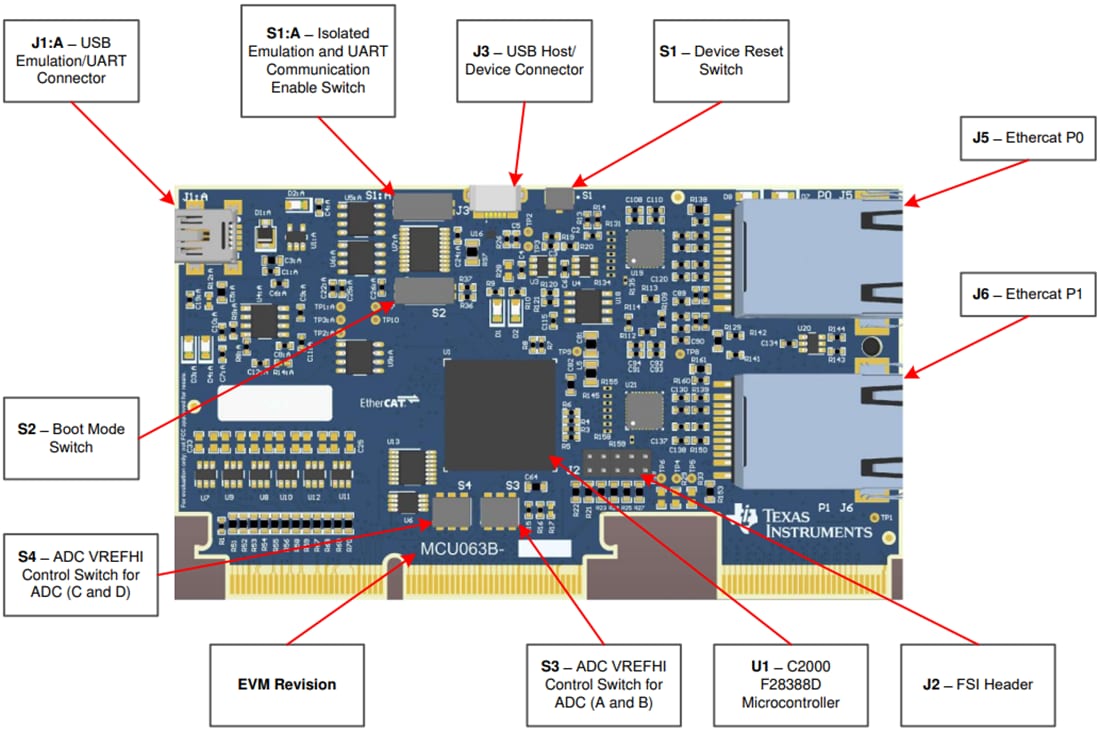

Key Components – Front

Mechanical Drawing - Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module

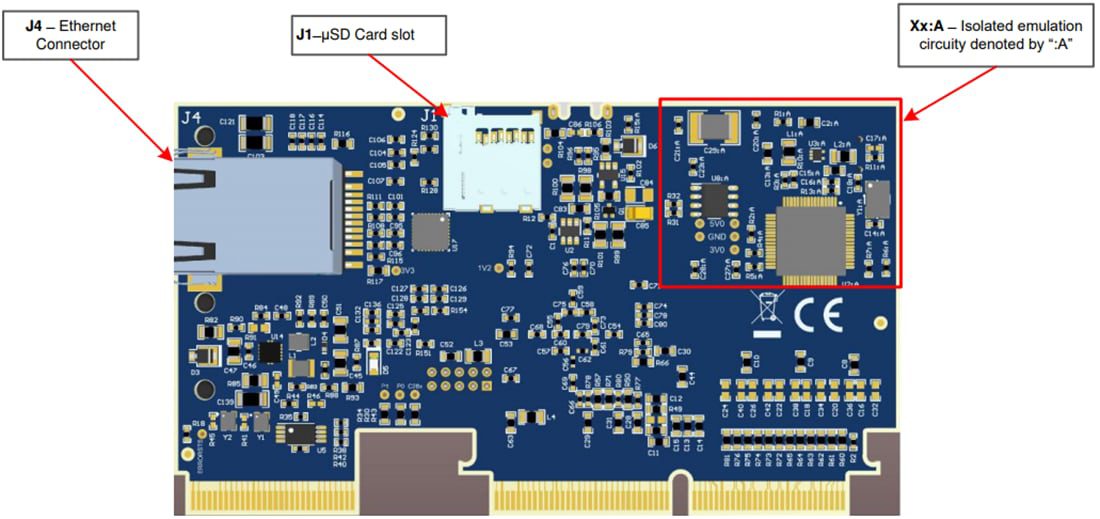

Key Components – Back

Mechanical Drawing - Texas Instruments TMDSCNCD28388D controlCARD Evaluation Module
