Texas Instruments TMDSCNCD2800157 Evaluation Module

Texas Instruments TMDSCNCD2800157 Evaluation Module is a low-cost solution for the TI C2000™ MCU series of F280015x devices. The TMDSCNCD2800157 evaluation module includes an HSEC180 (180-pin high-speed) edge connector and, as a controlCARD, is ideal for initial evaluation and prototyping. The TI TMDSCNCD2800157 requires a TMDSHSECDOCK 180-pin docking station for evaluation that can be purchased separately.

Features

  • Isolated on-board XDS110 debug probe for real-time debug and flash programming
  • Standard 180-pin controlCARD HSEC interface
  • Analog I/O, digital I/O, and JTAG signals at the card interface
  • Hardware files are in C2000Ware at boardscontrolCARDsTMDSCNCD2800157

Software

  • TI Code Composer Studio – Integrated development environment (IDE) for TI microcontrollers and embedded processors
  • Software development kits (SDK)
    • C2000Ware SDK – Low-level device drivers, highly optimized libraries, examples, and utilities
    • MotorControl SDK – Motor control system development for various three-phase motor control applications
    • DigitalPower SDK – Digital Power system development for various AC-DC, DC-DC, and DC-AC power supply applications
    • powerSUITE – Digital power supply design software tools for C2000 MCUs

Kit Contents

  • USB Type-A male to USB Type-C™ male cable

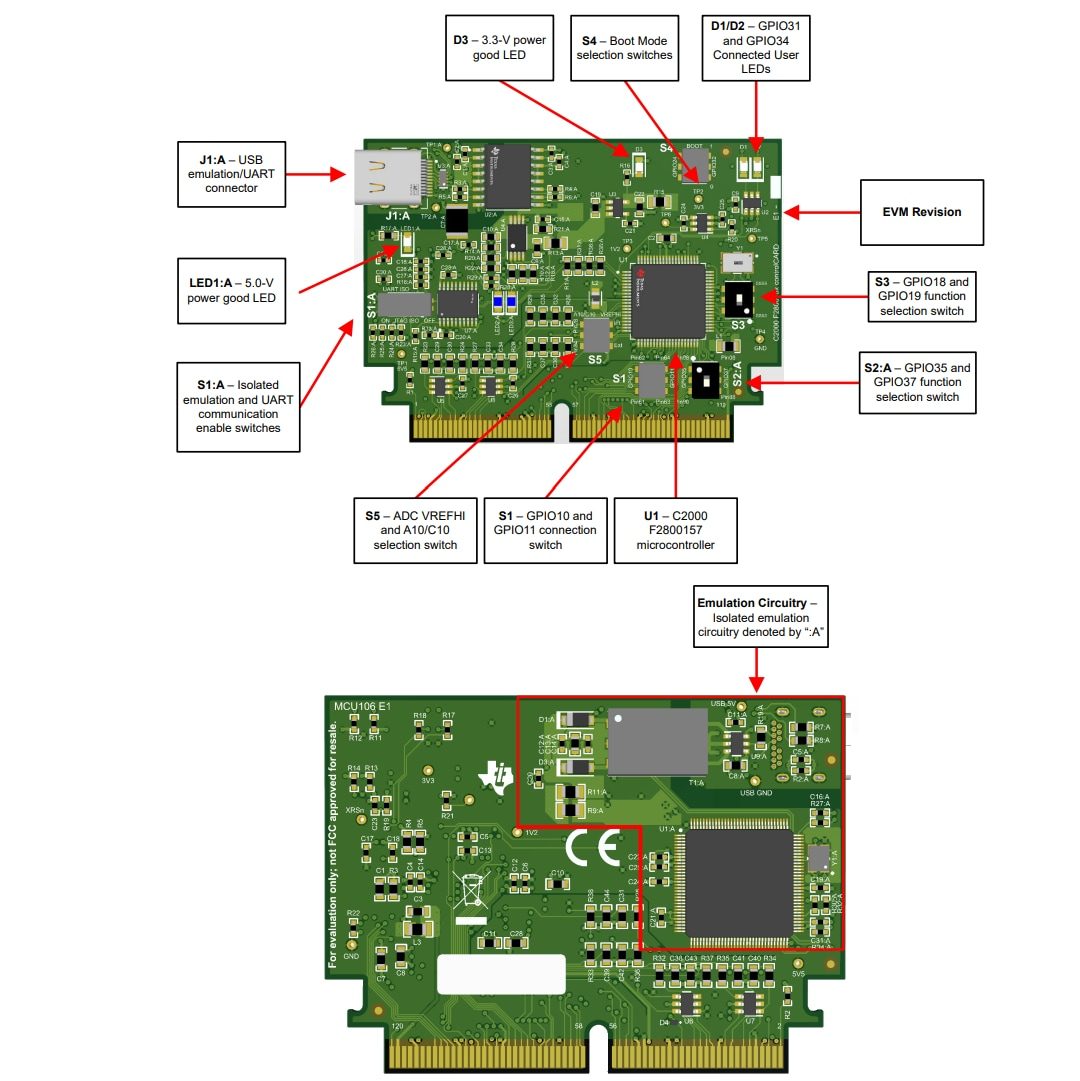

Key Components

Texas Instruments TMDSCNCD2800157 Evaluation Module

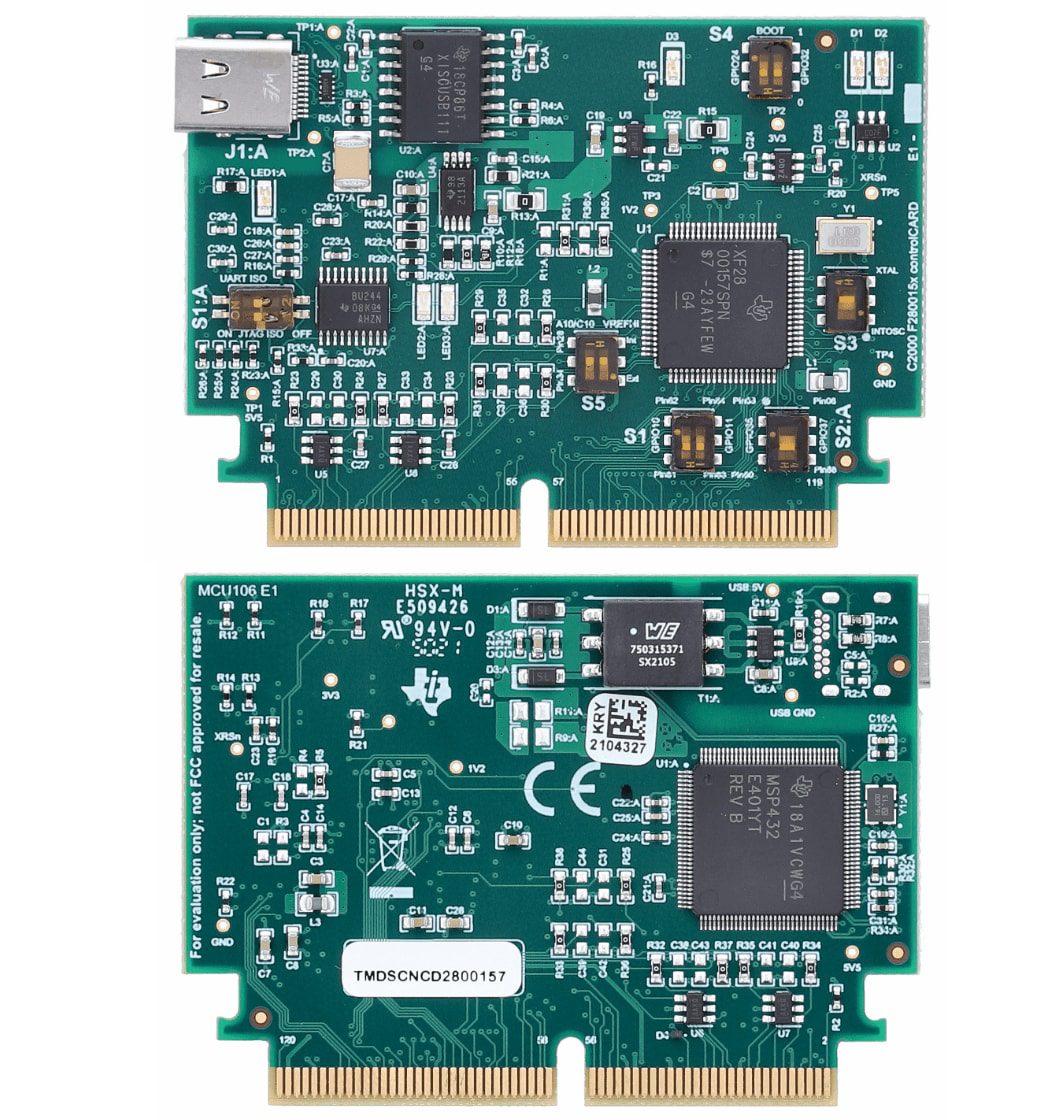

PCB Layout

Texas Instruments TMDSCNCD2800157 Evaluation Module
