Texas Instruments TMDSCNCD2800137 Evaluation Module

Texas Instruments TMDSCNCD2800137 Evaluation Module provides a low-cost evaluation and development board for the TI C2000™ TMS320F280013x MCUs. The TMDSCNCD2800137 features an HSEC180 (180-pin high-speed) edge connector and, as a controlCARD, is ideal for initial evaluation and prototyping. The TMDSHSECDOCK 180-pin docking station is required to evaluate TMDSCNCD2800137 and can be purchased separately.

Features

Hardware
- Isolated on-board XDS110 USB-to-JTAG debug probe enables real-time in-system programming and debugging
- Standard 180-pin controlCARD HSEC interface
- Analog I/O, digital I/O, and JTAG signals at the card interface
- Hardware files are in C2000Ware at boardscontrolCARDsTMDSCNCD2800137

Software
- Free download of Code Composer Studio IDE
- Free download of C2000Ware for device drivers and example projects
- MotorControl SDK
- DigitalPower SDK and powerSUITE

Kit Contents

USB Type-A male to USB Type-C^® male cable

Accessories

Daughter Card
- TMDSHSECDOCK an HSEC180 controlCARD baseboard docking station
Software Development Kit (SDK)
- C2000WARE for C2000 MCUs
- C2000WARE-DIGITALPOWER-SDK DigitalPower software development kit (SDK) for C2000™ MCUs
- C2000WARE-MOTORCONTROL-SDK MotorControl software development kit (SDK) for C2000™ MCUs
IDE, Configuration, Compiler, or Debugger
- CCSTUDIO Code Composer Studio™ integrated development environment (IDE)
- POWERSUITE Digital Power Supply Design Software Tools for C2000™ MCUs

Texas Instruments TMDSCNCD2800137 Evaluation Module

Features

Kit Contents

Accessories

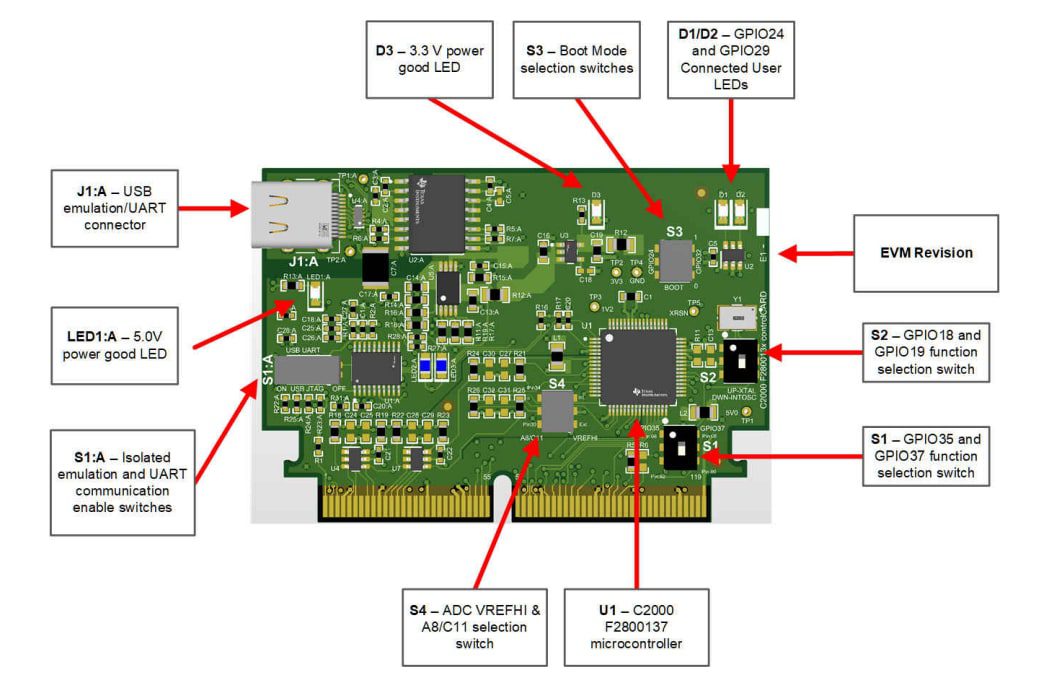

Components

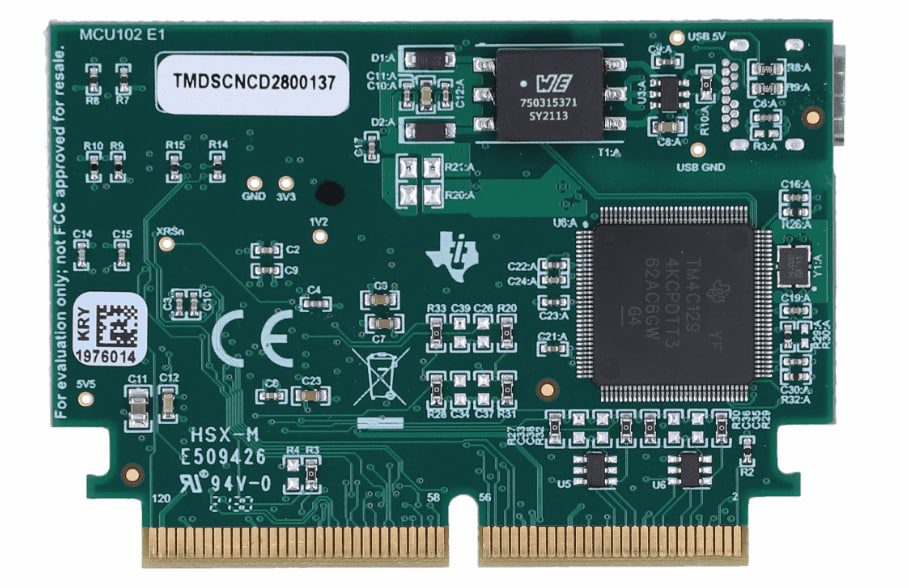

PCB Layout Front

PCB Layout Back
