Texas Instruments THVD1454EVM Evaluation Module

Texas Instruments THVD1454EVM Evaluation Module is designed to quickly and easily demonstrate the THVD1454. The THVD1454 is a half-duplex RS-485 transceiver with a selectable data rate and switchable integrated termination resistors housed in the 10-VSON (DRC) package. The TI THVD1454EVM evaluation module comes ready to use out of the box with the THVD1454 pre-installed.

Features

  • Ready to use out of the box with THVD1454 pre-installed
  • Two 10µF and two 47µF decoupling caps pre-installed on VCC to GND and GND to EARTH connections
  • Resistor pad available to create a resistive link between GND and EARTH connections
  • One 4×2 header connection for special function control signals
  • External termination resistor and capacitor pads on shared differential bus
  • Common mode voltage connection points located at J11 and J12

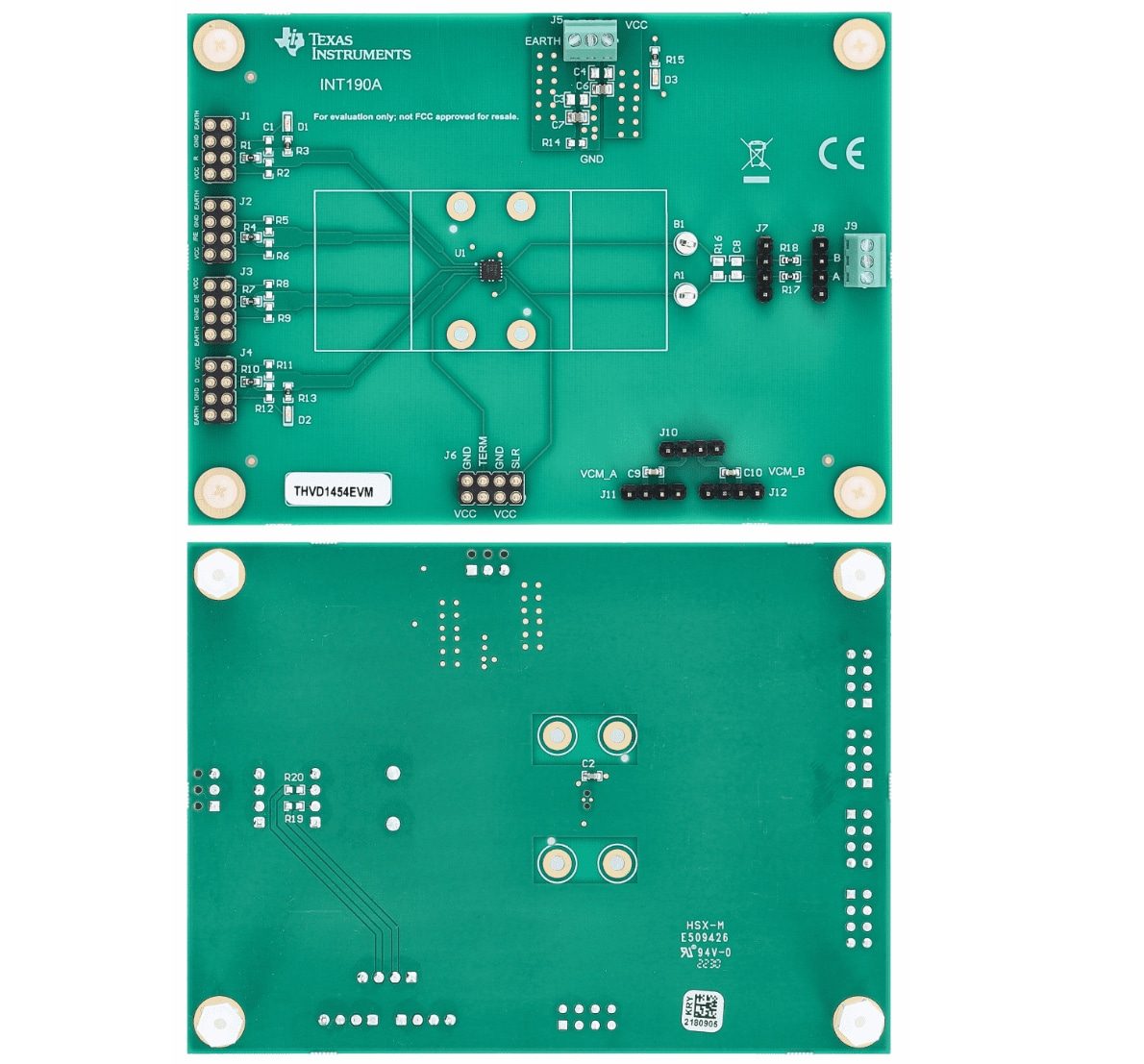

PCB Layout

Texas Instruments THVD1454EVM Evaluation Module
