Texas Instruments TFP410 PanelBus™ Digital Transmitter

Texas Instruments TFP410 PanelBus™ Digital Transmitter is a PanelBus™ flat-panel display product of end-to-end DVI 1.0-compliant solutions targeted at the consumer electronics and PC industry. The TFP410 device provides a universal interface, allowing glueless connection to the most commonly available graphics controllers. Some advantages of this universal interface include selectable bus widths, adjustable signal levels, and single-ended and differential clocking. The adjustable 1.1V to 1.8V digital interface provides a high-speed, low-EMI bus that connects with 24-bit or 12-bit interfaces. The DVI interface supports flat-panel display resolutions up to UXGA at 165MHz in 24-bit true color pixel format.

The TFP410 device combines PanelBus circuit innovation with Texas Instruments ultra-low ground inductance PowerPAD package and advanced 0.18µm EPIC-5 CMOS process technology. The result is a compact 64-pin TQFP package providing a reliable, low-noise, low-current, high-speed digital interface solution.

Features

Digital Visual Interface (DVI) compliant
Supports pixel rates up to 165MHz (including 1080p and WUXGA at 60Hz)
Universal graphics controller interface
- 12-bit, dual-edge and 24-bit, single-edge input modes
- Adjustable 1.1V to 1.8V and standard 3.3V CMOS input
- Signal levels
- Fully differential and single-ended input clocking modes
- Standard Intel 12-bit digital video port compatible as on Intel™ 81x Chipsets
Enhanced PLL noise immunity
- On-chip regulators and bypass capacitors to reduce system costs

Enhanced jitter performance
- No HSYNC jitter anomaly
- Negligible data-dependent jitter
Programmable using I²C serial interface
Monitor detection through hot-plug and receiver detection
Single 3.3V supply operation
64-pin TQFP using TI’s PowerPAD™ package
TI’s advanced 0.18µm EPIC-5™ CMOS process technology
Pin compatible with SiI164 DVI transmitter

Applications

DVD
Blu-ray

HD projectors
DVI/HDMI transmitter (HDMI video-only)

Texas Instruments TFP410 PanelBus™ Digital Transmitter

Features

Applications

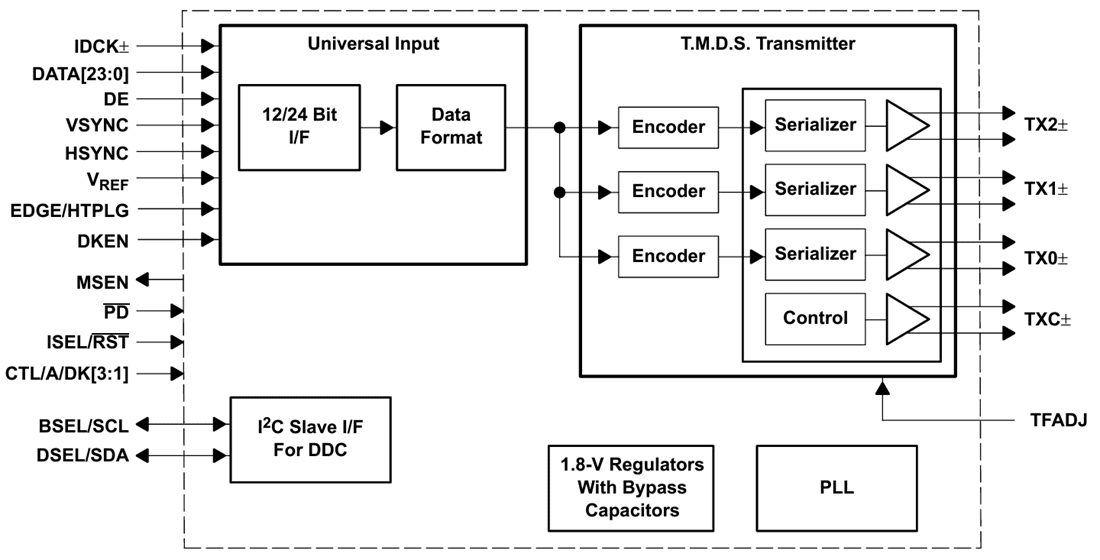

Functional Block Diagram
