Texas Instruments TDES4940 Bridge Deserializers

Texas Instruments TDES4940 Bridge Deserializers are V³Link™ enhanced video to DisplayPort (DP)/Embedded DisplayPort (eDP) bridge devices. With a chipset, the TDES4940 receives a high-speed serialized interface over low-cost 50Ω coax or STP/STQ cables.

The TI TDES4940 Bridge Deserializers are VESA DP v1.4a/eDP v1.4b compatible devices that support advanced features such as HBR3 and SuperFrame formats. The deserializers facilitate video resolutions of 4K 30-bit color and higher. The V³Link Enhanced Video aids video and audio data transmission and complete duplex control, including I²C and GPIO data over the same link. Consolidating video data and control over V³Link Enhanced Video lanes lowers the interconnect size and weight and simplifies system design. EMI is minimized by employing low-voltage differential signaling, data scrambling, and randomization. Using the compatible V³Link mode, the TDES4940 delivers up to 2K resolutions with 24-bit color depth over a single/dual link and HDCP v1.4 support when paired with an HDCP-capable serializer.

Features

DisplayPort (DP) / Embedded DisplayPort (eDP) Transmitter
- VESA DP v1.4a/eDP v1.4b transmitter
- HBR3/HBR2/HBR/RBR Link Bit Rates
- Main link: 1, 2, or 4 lanes
- Each lane up to 8.1Gbps
- AUX CH 1Mbps
- Hot Plug Detect (HPD)
- Extracts aggregated video streams to local eDP display
- Designed for 4K @ 60Hz video resolution
- Stream synchronization and splitting
V³Link enhanced video interface
- 13.5Gbps/12.528Gbps/10.8Gbps/6.75Gbps/3.375Gbps per Channel; Up to 27Gbps over dual channels
- Coax/STP interconnect support
- Selectable 1, 2 channels
- Daisy-chain and splitting
- Adaptive equalization
Ultra-low latency control channel
- Two fast-mode plus I²C up to 1MHz (up to 3.4MHz local bus access)
- High-speed GPIOs
- Supports SPI and UART pass-through GPIOs

Compatibility
- Integrated HDCP v1.4 with on-chip keys
- V³Link video and V³Link enhanced video product families
Image enhancement (white balance and dithering)
Security and diagnostics
- Voltage and temperature monitoring
- BIST and pattern generation
- CRC and error diagnostics
- ECC on control bits
- Unique ID for counterfeit protection
Advanced link robustness and EMC control
- Spread spectrum clocking generation (SSCG)
- Adaptive Receiver Equalization (AEQ)
Low power operation
- 1.8V and 1.15V dual power supply
Qualifications
- ISO 10605 and IEC 61000-4-2 ESD compliant
- Temperature of -20°C to +85°C

Applications

High-resolution display:
- Operating room displays
- Seat-back entertainment displays
- High-resolution HMI

Texas Instruments TDES4940 Bridge Deserializers

Features

Applications

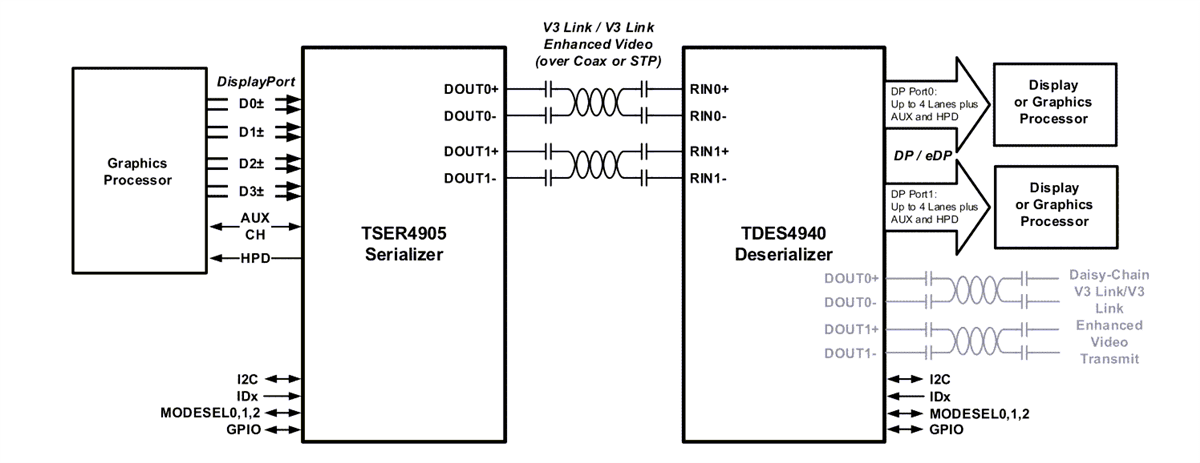

Block Diagram
