Texas Instruments TCAN1167-Q1 Automotive CAN FD SBC

Texas Instruments TCAN1167-Q1 Automotive CAN FD System Basis Chip (SBC) is a high-speed Controller Area Network (CAN) system basis chip (SBC) that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The transceiver supports classical CAN and CAN FD networks up to eight megabits per second (Mbps).

The Texas Instruments TCAN1164-Q1 supports a wide input supply range and integrates a 5V LDO output. The 5V LDO output (V_CCOUT) supplies the CAN transceiver voltage internally and additional current externally.

The TCAN1167-Q1 allows for system-level reductions in battery current consumption by selectively enabling the various power supplies that may be present on a system via the INH output pin. This feature allows an ultra-low-current sleep state where power is gated to all system components except for the TCAN1167-Q1 while monitoring the CAN bus. When a wake-up event is detected, the TCAN1167-Q1 initiates system start-up by driving INH high.

Features

AEC-Q100 (Grade 1) Qualified for automotive applications
Meets the requirements of ISO 11898-2:2016
Functional Safety Quality-Managed
- Documentation available to aid in functional safety system design
Wide input operational voltage range
Integrated LDO for CAN transceiver supply
- 5V LDO with 100mA output current capability
Classic CAN and CAN FD up to 8Mbps
- Watchdog timer supporting multiple modes
  - Timeout
  - Window
  - Question and Answer Watchdog (Q&A)
Operating modes programable via SPI
- Normal mode
- Silent mode
- Standby mode
- Low-power sleep mode

High-voltage INH output for system power control
Local wake-up support via the WAKE pin
Advanced CAN bus fault detection support
Defined behavior when unpowered
- Bus and IO terminals are high impedance (no load to operating bus or application)
Protection features
- ±58V CAN bus fault-tolerant
- Load dump support on VSUP
- IEC ESD protection
- Under-voltage and over-voltage protection
- Thermal shutdown protection
- TXD dominant state timeout (TXD DTO)
Extra-wide junction temperature support
Available in the leadless VSON (14) package with wettable flank for improved automated optical inspection (AOI) capability

Applications

Advanced driver assistance system (ADAS)
Body electronics and lighting

Automotive infotainment and cluster
Hybrid, electric, and powertrain systems

Texas Instruments TCAN1167-Q1 Automotive CAN FD SBC

Features

Applications

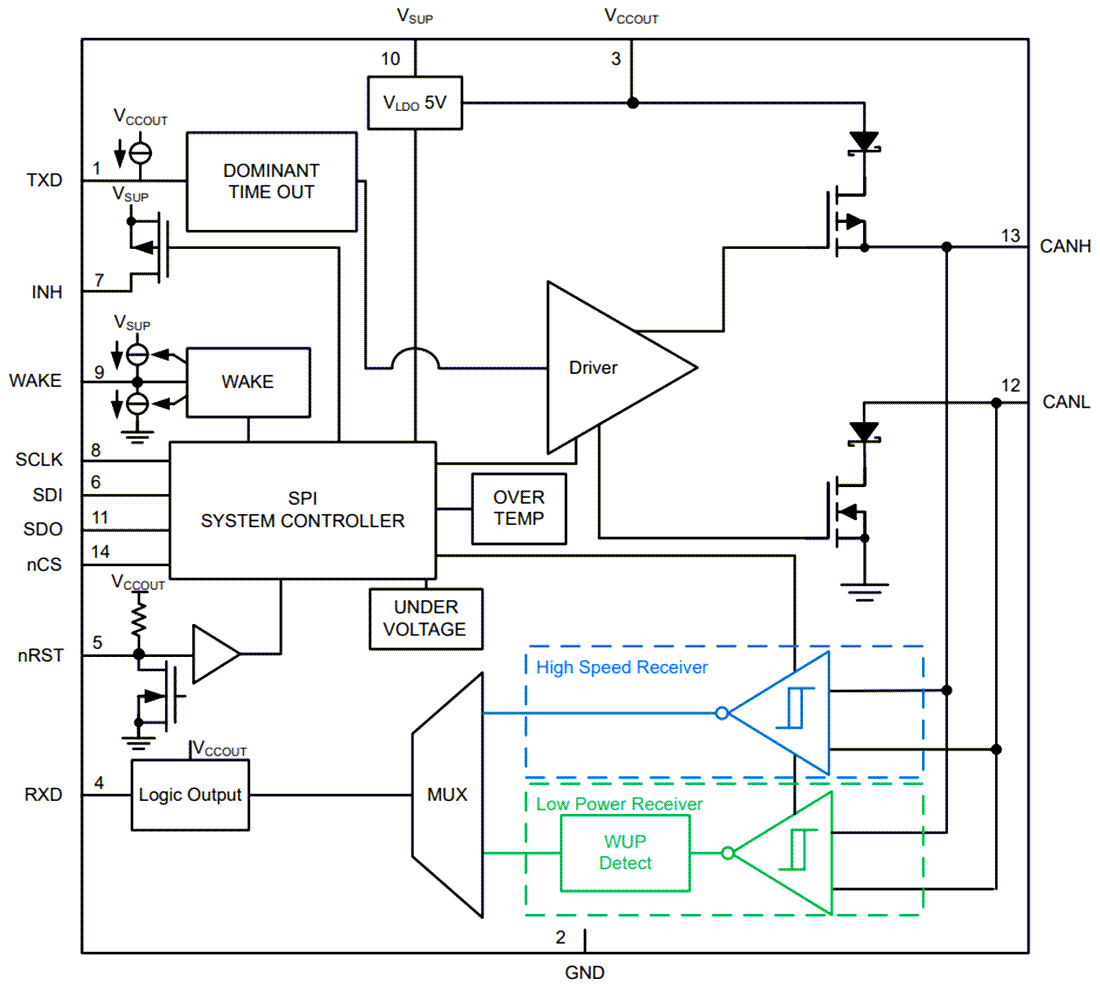

Functional Block Diagram
