Texas Instruments TCAN1162-Q1 Automotive CAN FD Transceiver

Texas Instruments TCAN1162-Q1 Automotive CAN FD Transceiver is a high-speed Controller Area Network (CAN) transceiver that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The TCAN1162-Q1 supports classical CAN and CAN FD networks up to eight megabits per second (Mbps).

The TCAN1162-Q1 integrates a 5V LDO with a wide input operating range that provides the CAN transceiver voltage, thereby eliminating the need for the 5V supply from an external voltage source.

The Texas Instruments TCAN1162-Q1 allows for system-level reductions in battery current consumption by selectively enabling the various power supplies that may be present on a system via the INH output pin. This feature allows an ultra-low-current sleep state where power is gated to all system components except for the TCAN1162-Q1 while monitoring the CAN bus. When a wake-up event is detected, the TCAN1162-Q1 initiates system start-up by driving INH high.

Features

AEC Q100 (Grade 1) Qualified for automotive applications
Meets the requirements of ISO 11898-2:2016
Functional Safety-Capable
- Documentation available to aid in functional safety system design
Wide input operational voltage range
Integrated LDO for CAN transceiver supply
Classic CAN and CAN FD up to 8 Mbps
V_IO level shifting supports 1.7V to 5.5V
Operating modes
- Normal mode
- Standby mode
- Low-power sleep mode
High-voltage INH output for system power control

Local wake-up support via the WAKE pin
Defined behavior when unpowered
- Bus and IO terminals are high impedance (no load to operating bus or application)
Protection features
- ±58V CAN bus fault-tolerant
- Load dump support on VSUP
- IEC ESD protection
- Under-voltage and over-voltage protection
- Thermal shutdown protection
- TXD dominant state timeout (TXD DTO)
Extra-wide junction temperature support
Available in the leadless VSON (14) package with wettable flank for improved automated optical inspection (AOI) capability

Applications

Advanced driver assistance system (ADAS)
Body electronics and lighting

Automotive infotainment and cluster
Hybrid, electric, and powertrain systems

Texas Instruments TCAN1162-Q1 Automotive CAN FD Transceiver

Features

Applications

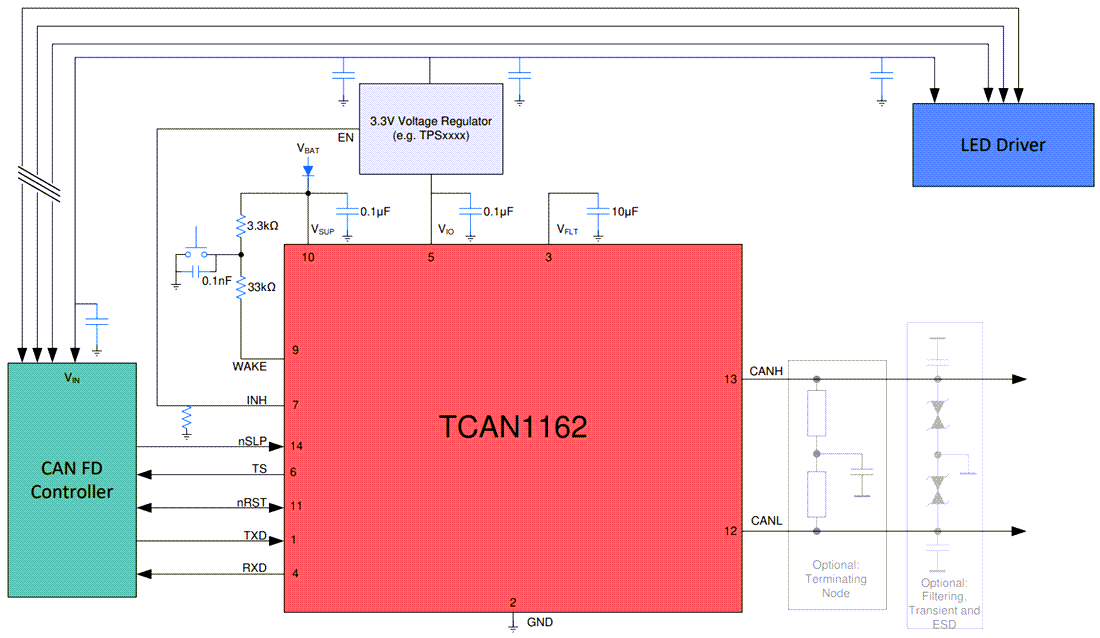

Simplified Schematic
