Texas Instruments TCAN1043A-Q1 Automotive CAN FD Transceiver

Texas Instruments TCAN1043A-Q1 Automotive CAN FD Transceiver is a high-speed Controller Area Network (CAN) transceiver that meets the physical layer requirements of the ISO 11898-2:2016 high-speed CAN specification. The device supports classical CAN and CAN FD data rates of up to eight megabits per second (Mbps).

The TCAN1043A-Q1 allows for system-level reductions in battery current consumption by selectively enabling the various power supplies present on a system via the INH output pin. This feature allows a low-current sleep state in which power is gated to all system components except for the TCAN1043A-Q1 while monitoring the CAN bus. When a wake-up event is detected, the TCAN1043A-Q1 initiates system start-up by driving INH high.

The Texas Instruments TCAN1043A-Q1 features an SWE timer that enables a safe transition to Sleep mode after 4 minutes (tINACTIVE) of inactivity in Standby mode. This timer ensures that the device is transitioned to low-power Sleep mode if the MCU fails to transition the device to Normal mode.

Features

AEC Q100 (Grade 1) Qualified for automotive applications
Functional Safety-Capable
- Documentation available to aid in functional safety system design
Meets the requirements of ISO 11898-2:2016
Wide input operational voltage range
Supports classic CAN and CAN FD up to 8Mbps
V_IO level shifting supports 1.7V to 5.5V
Operating modes
- Normal mode
- Silent mode
- Standby mode
- Low-power sleep mode
High-voltage INH output for system power control
Local wake-up support via the WAKE pin
Defined behavior when unpowered
- Bus and IO terminals are high impedance (no load to operating bus or application)

Sleep-Wake Error (SWE) timer enables a safe transition from standby mode to sleep mode in the event of a system power failure or software fault
- Allows for extended power-up time
Protection features
- ±58V CAN bus fault-tolerant
- Load dump support on VSUP
- IEC ESD protection
- Under-voltage protection
- Thermal shutdown protection
- TXD dominant state timeout (TXD DTO)
Available in 14-pin leaded (SOT and SOIC) packages and leadless (VSON) package with wettable flanks for improved automated optical inspection (AOI) capability

Applications

Body electronics and lighting
Automotive gateway
Advanced driver assistance systems (ADAS)
Infotainment and cluster

Hybrid, electric, and powertrain systems
Personal transport vehicles – electric bike
Industrial transportation

Texas Instruments TCAN1043A-Q1 Automotive CAN FD Transceiver

Features

Applications

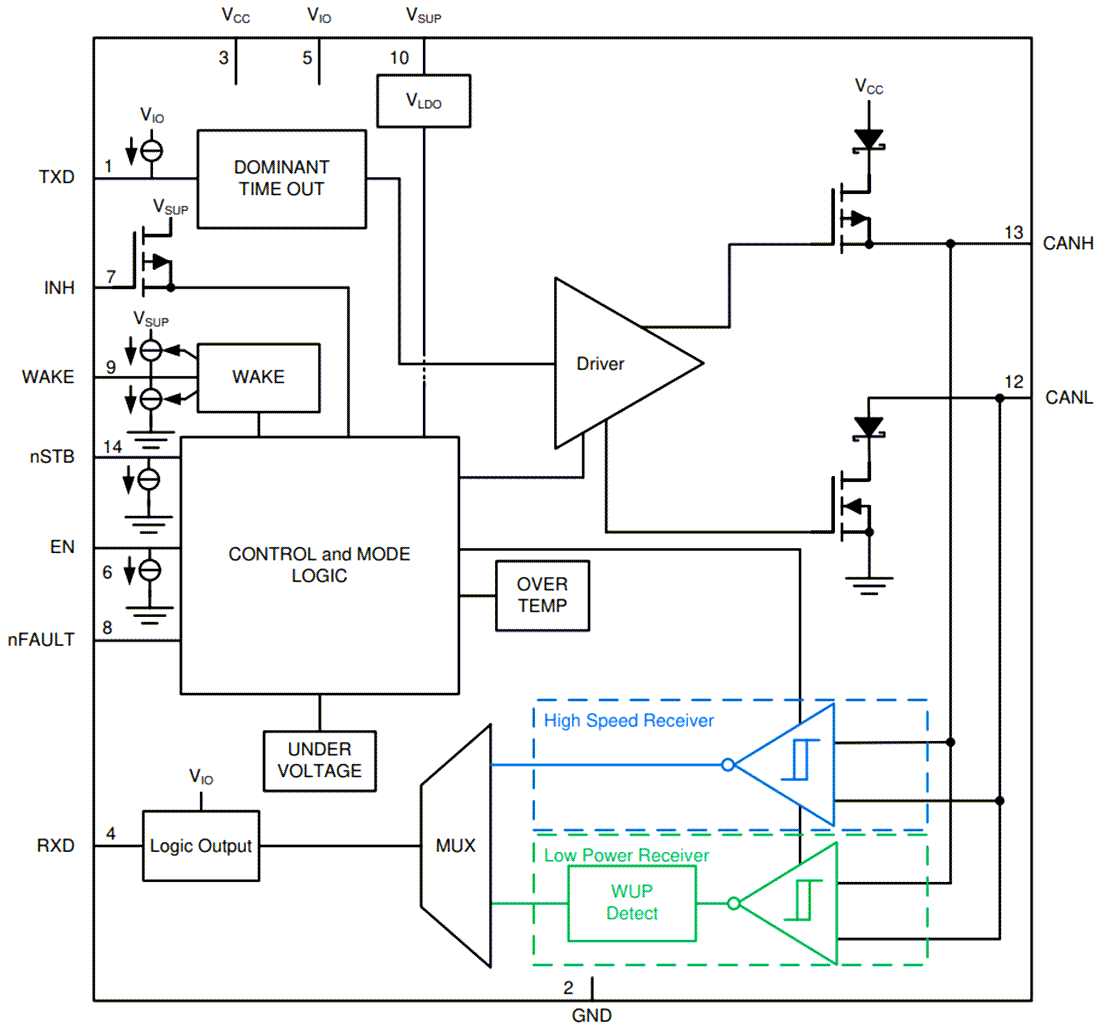

Functional Block Diagram
