Texas Instruments TAS2781EVM Evaluation Module

Texas Instruments TAS2781EVM Evaluation Module demonstrates the performance of the TAS2781 Class-D audio amplifier in a mono configuration. This evaluation module uses interfaces such as I²C or SPI, USB, hardware shutdown control, and external 100-mil headers to support the evaluation and development of TAS2781. The TAS2781EVM module can be controlled and configured using the PurePath Console 3 software.

Features

Supports evaluation and development of the TAS2781 through various interfaces:
- USB interface
- Software control via PurePath™ Console 3 (PPC3) GUI, USB-HID
- USB-class audio device, compatible with Microsoft^® Windows^® 7+
- PSIA – I₂S/TDM interface
- I²C or SPI
- External 100-mil headers
- Hardware shutdown control
- Interrupt output

Uses the onboard controller to provide a connection interface and supply voltages
Hybrid-pro boost controller support
USB input for audio data and control

Texas Instruments TAS2781EVM Evaluation Module

Features

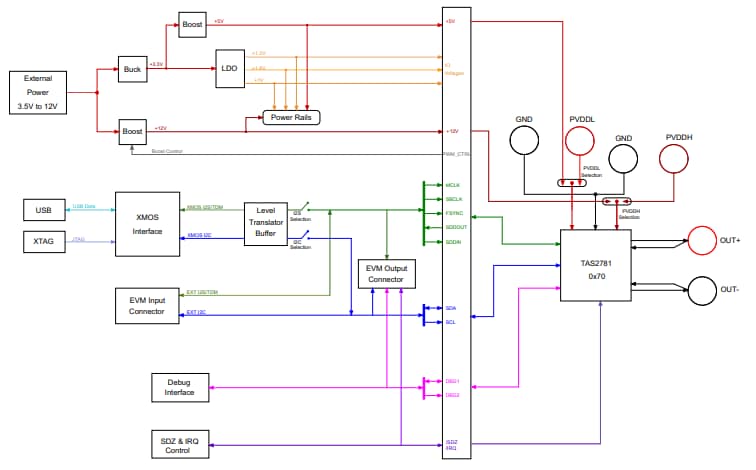

TAS2781EVM Schematic and Block Diagram
