Texas Instruments SN74LV8T165/SN74LV8T165-Q1 8-Bit Shift Registers

Texas Instruments SN74LV8T165/SN74LV8T165-Q1 Parallel-Load 8-Bit Shift Registers are parallel- or serial-in, serial-out 8-bit shift registers. These devices have two modes of operation: load data and shift data, which are controlled by the SH/LD input. The output level supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels and references the supply voltage (V_CC).

The input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example, 1.2V input to 1.8V output or 1.8V input to 3.3V output). In addition, the 5V tolerant input pins enable down translation (for example, 3.3V to 2.5V output). The Texas Instruments SN74LV8T165-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

Wide operating range of 1.8V to 5.5V
Single-supply voltage translator
- Up translation
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation
  - 5.0V, 3.3V, 2.5V to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V

5.5V tolerant input pins
Supports standard pinouts
Up to 150Mbps with 5V or 3.3V V_CC
Latching logic with known power-up state
Latch-up performance exceeds 250mA per JESD 17

Applications

Increase the number of inputs on a microcontroller

Texas Instruments SN74LV8T165/SN74LV8T165-Q1 8-Bit Shift Registers

Features

Applications

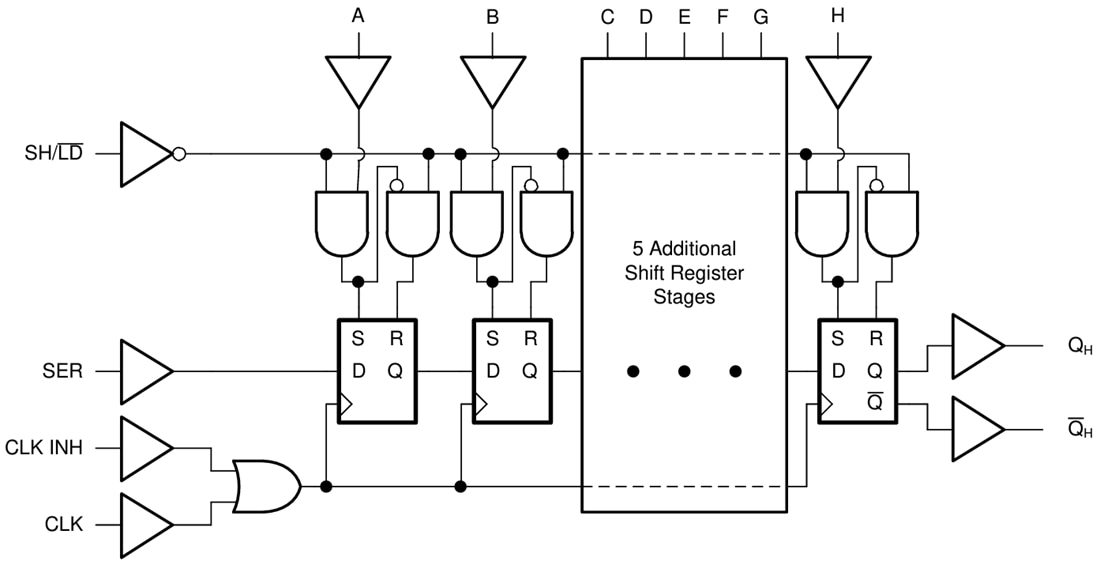

Functional Block Diagram
