Texas Instruments SN74LV6T14/SN74LV6T14-Q1 Hex Inverters

Texas Instruments SN74LV6T14/SN74LV6T14-Q1 Hex Schmitt-Trigger Inverters contain six independent inverters with Schmitt-trigger inputs. Each gate performs the Boolean function Y = A in positive logic. The output level is referenced to the supply voltage (V_CC) and supports 1.8V, 2.5V, 3.3V, and 5V CMOS levels.

The Texas Instruments SN74LV6T14/SN74LV6T14-Q1 input is designed with a lower threshold circuit to support up translation for lower voltage CMOS inputs (for example, 1.2V input to 1.8V output or 1.8V input to 3.3V output). In addition, the 5V tolerant input pins enable down translation (for example, 3.3V to 2.5V output). The SN74LV6T14-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

Single-supply voltage translator (refer to LVxT Enhanced Input Voltage)
- Up translation
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation
  - 5.0V, 3.3V, 2.5V to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V

Available in wettable flank QFN (WBQA) package
Wide operating range of 1.8V to 5.5V
5.5V tolerant input pins
Supports standard pinouts
Up to 150Mbps with 5V or 3.3V V_CC
Latch-up performance exceeds 250mA per JESD 17

Applications

Synchronize inverted clock inputs
Debounce a switch
Invert a digital signal

Texas Instruments SN74LV6T14/SN74LV6T14-Q1 Hex Inverters

Features

Applications

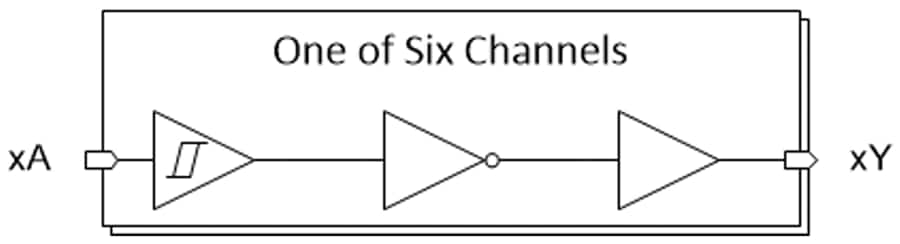

Functional Block Diagram
