Texas Instruments SN74LV594A/SN74LV594A-Q1 Serial Shift Registers

Texas Instruments SN74LV594A/SN74LV594A-Q1 8-Bit Parallel-Out Serial Shift Registers are designed for 2V to 5.5V V_CC operation. The SN74LV594A-Q1 is AEC-Q100 qualified for automotive applications and is available in a wettable flank QFN (WBQB) package. The TI SN74LV594A/-Q1 provides direct overriding that clears on shift and storage registers.

Features

AEC-Q100 qualified for automotive applications (SN74LV594A-Q1):
- Device temperature grade 1 at –40°C to +125°C, T_A
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
- Available in wettable flank QFN (WBQB) package
2V to 5.5V V_CC operation
Maximum t_pd of 6.5ns at 5V

Typical V_OLP (output ground bounce) <0.8V at V_CC = 3.3V, T_A = 25°C
Support mixed-mode voltage operation on all ports
8-bit serial-in, parallel-out shift registers with storage
Independent direct overriding clears on shift and storage registers
Independent clocks for shift and storage registers
Latch-up performance exceeds 100mA per JESD 78, Class II

Applications

Output expansion
LED matrix control
7-segment display control
ECG electrocardiograms

Storage servers
EPOS, ECR, and cash drawers
Servers and high-performance computing

Texas Instruments SN74LV594A/SN74LV594A-Q1 Serial Shift Registers

Features

Applications

SN74LV594A Logic Diagram (Positive Logic)

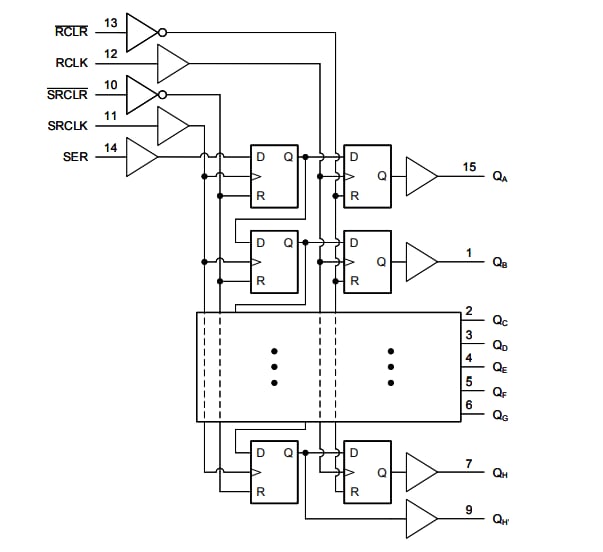

SN74LV594A-Q1 Logic Diagram (Positive Logic)
