Texas Instruments SN74LV245A Octal Bus Transceivers

Texas Instruments SN74LV245A Octal Bus Transceivers are designed for asynchronous two-way communication between data buses. These parts operate from 2 to 5.5V V_CC operation. The control-function implementation minimizes external timing requirements. The Texas Instruments SN74LVT245A devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction–control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

Features

2V to 5.5V V_CC operation
Maximum t_pd of 6.5ns at 5V
Typical V_OLP (output ground bounce) < 0.8V at V_CC = 3.3V, T_A = 25°C
Typical V_OHV (output V_OH undershoot) > 2.3V at V_CC = 3.3V, T_A = 25°C
Support mixed-mode voltage operation on all ports

I_off supports partial-power-down mode operation
Latch-up performance exceeds 250mA per JESD 17
ESD protection exceeds JESD 22
- 2000V Human-Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged-Device Model (C101)

Applications

Servers
LED displays
Network switches

Telecom infrastructure
Motor drivers
I/O expanders

Texas Instruments SN74LV245A Octal Bus Transceivers

Features

Applications

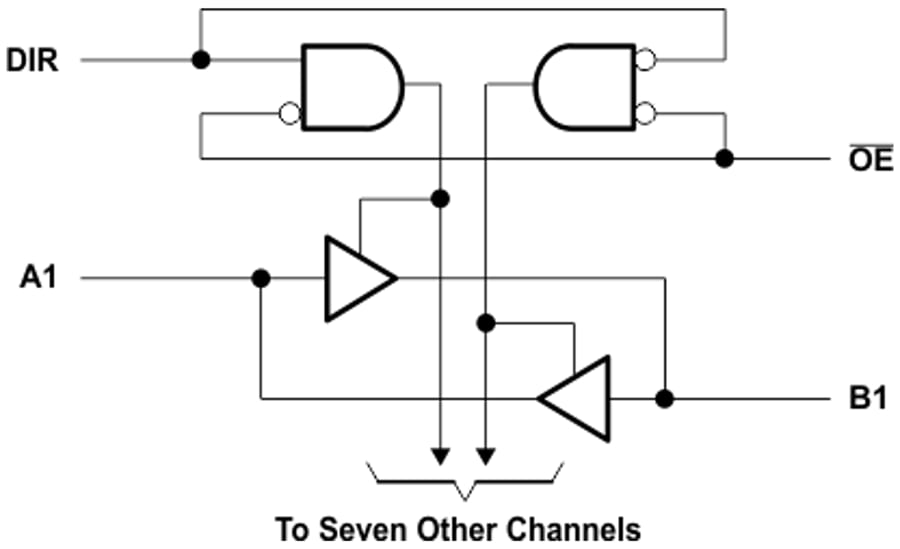

Functional Block Diagram
