Texas Instruments SN74LV14B-EP Hex Schmitt-Trigger Inverters

Texas Instruments SN74LV14B-EP Hex Schmitt-Trigger Inverters contain six independent inverters with Schmitt-trigger inputs designed for 2V to 5.5V VCC operation. Each gate performs the Boolean function Y = A in positive logic. The Texas Instruments SN74LV14B-EP is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the devices when these are powered down. The SN74LV14B-EP device has gold bond wires, a temperature range of –55°C to +105°C, and an SnPb lead finish.

Features

2V to 5.5V V_CC operation
Maximum t_pd of 14ns at 5V
Supports mixed-mode voltage operation on all ports
Ioff supports partial-power-down mode operation
Latch-up performance exceeds 250mA per JESD 17
Operating ambient temperature of -55°C to +125°C

Supports defense, aerospace, and medical applications
- Controlled baseline
- One assembly and test site
- One fabrication site
- Extended product life cycle
- Product traceability

Applications

Synchronize inverted clock inputs
Debounce a switch
Invert a digital signal

Texas Instruments SN74LV14B-EP Hex Schmitt-Trigger Inverters

Features

Applications

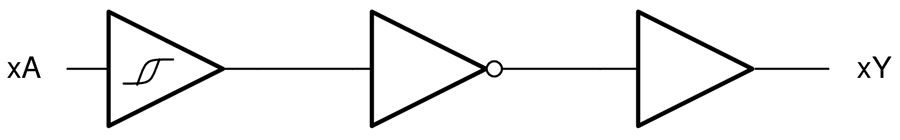

Functional Block Diagram
