Texas Instruments SN74HCT165/SN74HCT165-Q1 Shift Register

Texas Instruments SN74HCT165/SN74HCT165-Q1 Parallel-Load Shift Register is a parallel- or serial-in, serial-out 8-bit shift register. Parallel-in access to each stage is provided by eight individual direct data (A-H) inputs enabled by a low level at the shift/load (SH/LD) input. The SN74HCT165/SN74HCT165-Q1 also features a clock-inhibit (CLK INH) function and a complementary serial (Q H) output. The Texas Instruments SN74HCT165-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

  • LSTTL input logic compatible
    • VIL(max) = 0.8V, VIH(min) = 2V
  • CMOS input logic compatible
    • II ≤ 1µA at VOL, VOH
  • 4.5V to 5.5V operation
  • Supports fanout up to 10 LSTTL loads
  • Direct overriding load (data) inputs
  • Gated clock inputs
  • –40°C to +125°C, TA extended ambient temperature range

Applications

  • Increase the number of inputs on a microcontroller

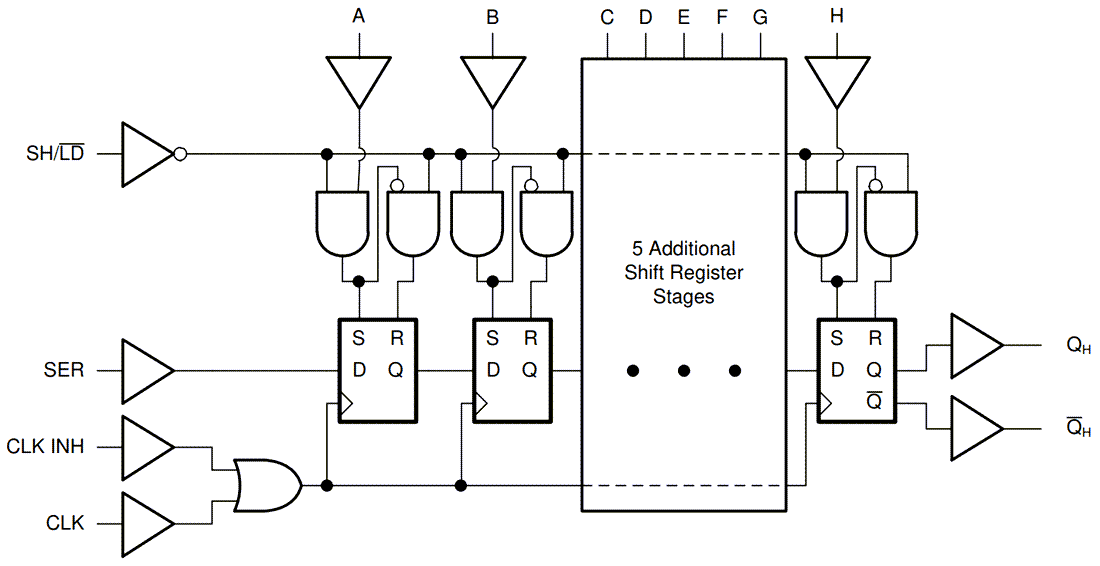

Functional Block Diagram

Block Diagram - Texas Instruments SN74HCT165/SN74HCT165-Q1 Shift Register
