Texas Instruments SN74HCS373/SN74HCS373-Q1 Octal D-Type Latch

Texas Instruments SN74HCS373/SN74HCS373-Q1 Octal Transparent D-Type Latch contains eight D-type latches. All inputs include Schmitt-trigger architecture. All channels for the Texas Instruments SN74HCS373/SN74HCS373-Q1 share a latch enable (LE) input and output-enable (OE) input.

Features

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: –40°C to +125°C, T_A
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
Low power consumption
- Typical I_CC of 100nA
- Typical input leakage current of ±100nA

Available in wettable flank QFN (WBQB) package
2V to 6V wide operating voltage range
Schmitt-trigger inputs allow for slow or noisy input signals
±7.8mA output drive at 6V
–40°C to +125°C, T_A extended ambient temperature range

Applications

Parallel data storage
Digital bus buffer

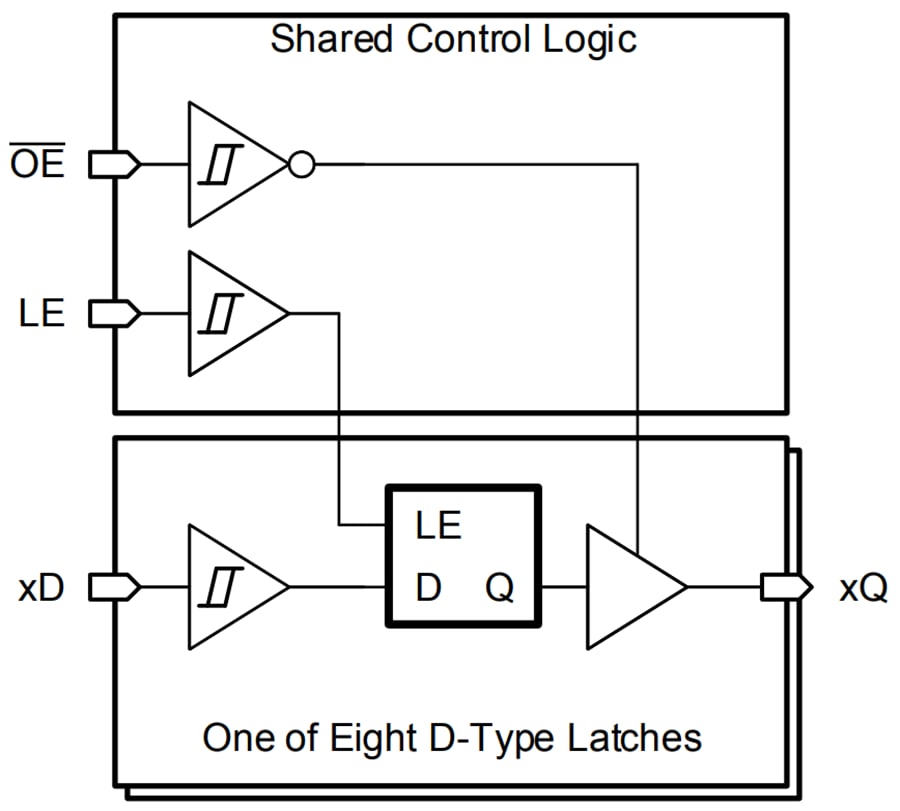

Functional Block Diagram

Block Diagram - Texas Instruments SN74HCS373/SN74HCS373-Q1 Octal D-Type Latch
