Texas Instruments SN74HCS240/SN74HCS240-Q1 Buffers & Drivers

Texas Instruments SN74HCS240/SN74HCS240-Q1 Octal Buffers and Line Drivers contain eight independent inverting line drivers with 3-state outputs and Schmitt-trigger inputs. Each channel performs the Boolean function Y = A in positive logic. The channels are grouped in sets of four, with one OE pin controlling each set. The outputs of the Texas Instruments SN74HCS240 can be put into a hi-Z state by applying a high on the associated OE pin.

Features

2V to 6V wide operating voltage range
Schmitt-trigger inputs allow for slow or noisy input signals
±7.8mA output drive at 6V
–40°C to +125°C, TA extended ambient temperature range

Low power consumption
- Typical ICC of 100nA
- Typical input leakage current of ±100nA

Applications

Enable or disable a digital signal
Eliminate slow or noisy input signals

Hold a signal during controller reset
Debounce a switch

Texas Instruments SN74HCS240/SN74HCS240-Q1 Buffers & Drivers

Features

Applications

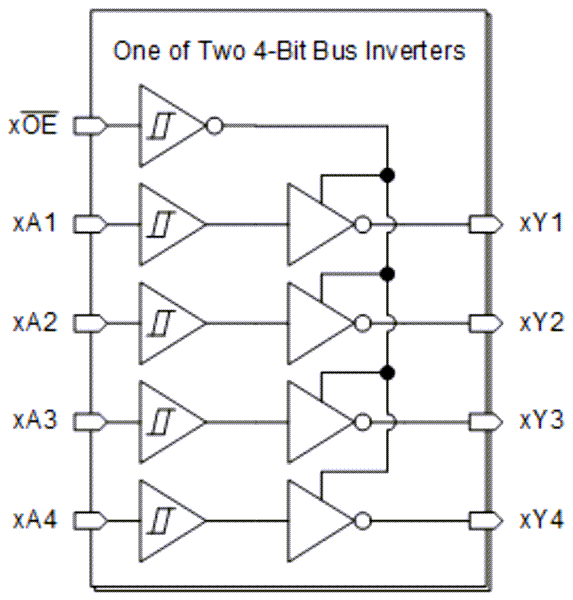

Functional Block Diagram
