Texas Instruments SN74AHCT00/SN74AHCT00Q-Q1 Positive NAND Gates

Texas Instruments SN74AHCT00/SN74AHCT00Q-Q1 Quadruple 2-Input Positive NAND Gates perform the Boolean function Y = A • B or Y = A + B in positive logic. These devices have an operating range of 4.5V to 5.5V with low power consumption (10µA maximum I_CC). The output drive at 5V is ±8mA with inputs that are TTL-voltage compatible. The Texas Instruments SN74AHCT00Q-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

Operating range of 4.5V to 5.5V
Low power consumption, 10µA maximum I_CC
±8mA output drive at 5V

Inputs are TTL-voltage compatible
Latch-up performance exceeds 250mA per JESD 17

Applications

Enable or disable a digital signal
Controlling an indicator LED

Translation between communication modules and system controllers

Texas Instruments SN74AHCT00/SN74AHCT00Q-Q1 Positive NAND Gates

Features

Applications

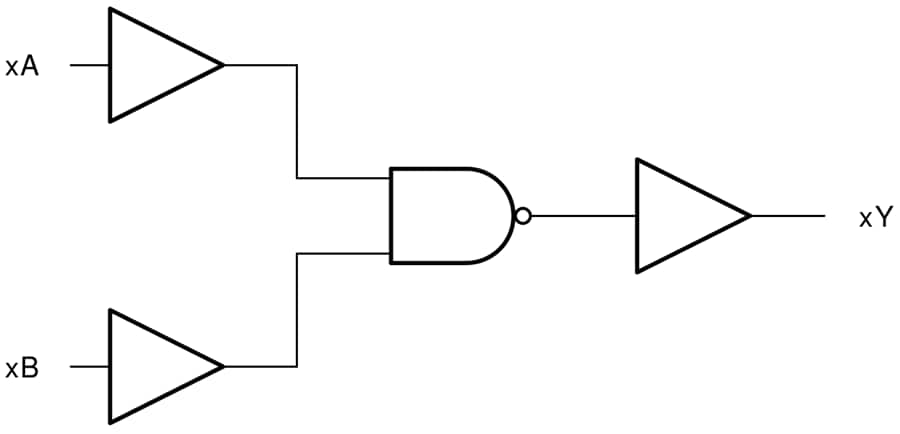

Functional Block Diagram
