Texas Instruments SN74AHC32/SN74AHC32-Q1 2-Input Positive-OR Gates

Texas Instruments SN74AHC32/SN74AHC32-Q1 Quad 2-Input Positive-OR Gates are quadruple 2-input positive-OR gates. These devices have an operating range of 2V to 5.5V. These devices perform the Boolean function Y = A × B or Y = A + B in positive logic. Devices are available in various packages (SSOP-14, TVSOP-14, SOIC-14, PDIP-14, SO-14, TSSOP-14, VQFN-14, and WQFN-14). The Texas Instruments SN74AHC32-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

Operating range of 2V to 5.5V
Low power consumption, 10µA maximum I_CC

±8mA output drive at 5V
Latch-up performance exceeds 250mA per JESD 17

Applications

Enable or disable a digital signal
Controlling an indicator LED

Translation between communication modules and system controllers

Texas Instruments SN74AHC32/SN74AHC32-Q1 2-Input Positive-OR Gates

Features

Applications

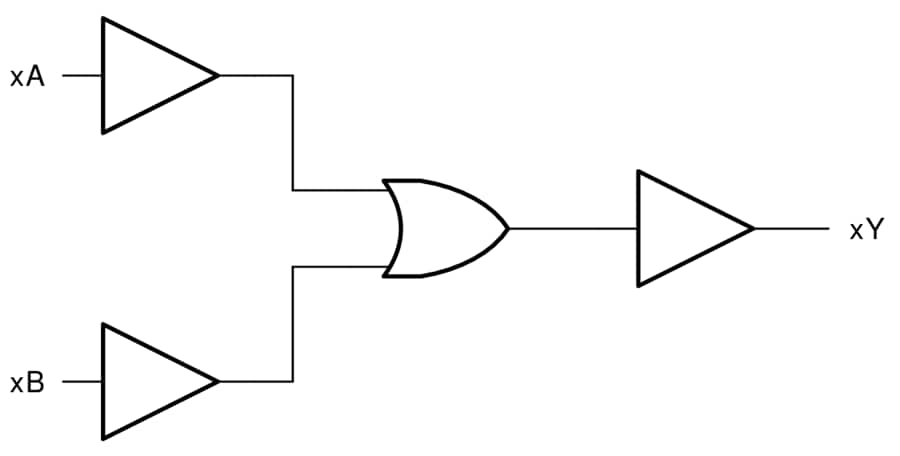

Functional Block Diagram
