Texas Instruments SN74AHC245/SN74AHC245-Q1 Octal Bus Transceiver

Texas Instruments SN74AHC245/SN74AHC245-Q1 Octal Bus Transceiver is designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. This device allows data transmission from the A bus to the B bus or from the B bus to the A bus. This transmission will depend on the logic level at the direction-control (DIR) input. The output-enable (OE) input can be used to disable the device so that the buses are effectively isolated.

To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the driver’s current-sinking capability determines the resistor’s minimum value. The Texas Instruments SN74AHC245-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

Operating range 2V to 5.5V V_CC
Latch-up performance exceeds 250 mA per JESD 17
On products compliant with MIL-PRF-38535, all parameters are tested unless otherwise noted
- On all other products, production processing does not necessarily include testing all parameters

Applications

Servers
PCs and notebooks
Network switches
Wearable health and fitness devices
Telecom infrastructures

Electronic points of sale
Enable or disable a digital signal
Hold a signal during controller reset
Debounce a switch

Texas Instruments SN74AHC245/SN74AHC245-Q1 Octal Bus Transceiver

Features

Applications

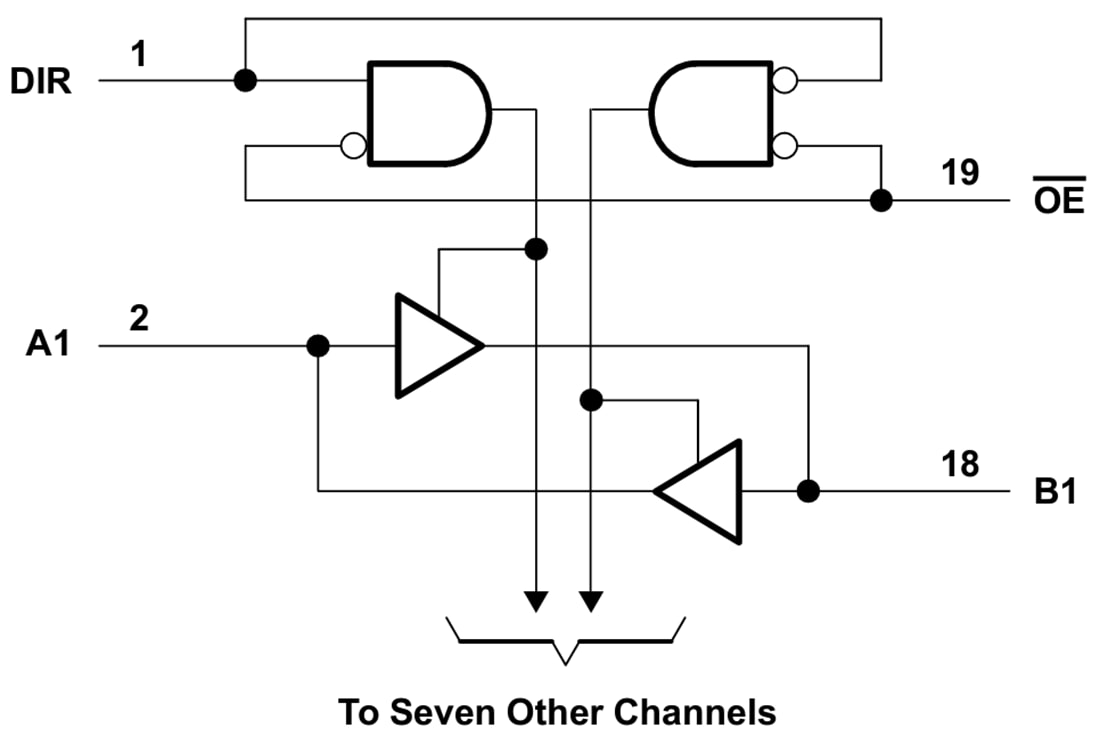

Functional Block Diagram
