Texas Instruments SN74AHC126/SN74AHCT126-Q1 Quad Bus Buffer Gates

Texas Instruments SN74AHC126/SN74AHCT126-Q1 Quad Bus Buffer Gates are quadruple bus buffer gates with independent line drivers with 3-state outputs. For the high-impedance state during power up or power down, OE can be tied to GND through a pull-down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the drive. The Texas Instruments SN74AHCT126-Q1 devices are AEC-Q100 qualified for automotive applications.

Features

  • Operating range of 2V to 5.5V
  • Low delay, 3.8ns (typical with 5V supply)
  • Latch-up performance exceeds 250mA Per JESD 17

Applications

  • Drive indicator LEDs
  • Drive transmission lines with logic
  • Enable or disable a digital signal

Logic Diagram

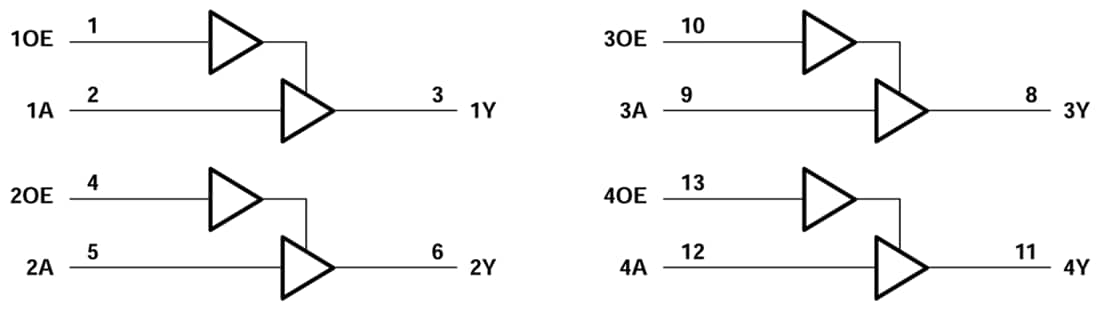

Block Diagram - Texas Instruments SN74AHC126/SN74AHCT126-Q1 Quad Bus Buffer Gates
