Texas Instruments PFCLLCSREVM034 AC to Isolated DC Evaluation Module

Texas Instruments PFCLLCSREVM034 AC to Isolated DC Evaluation Module (EVM) is for evaluation of the UCC28056B, UCC25604, and UCC24624 devices. The evaluation module is a 168W AC/DC supply with a transition-mode power-factor-correction front end and isolated half-bridge LLC resonant converter with synchronous rectification. The Texas Instruments PFCLLCSREVM034 accepts AC input from 90Vrms to 264Vrms and outputs 12VDC with 168W full-load output power.

Features

  • Low-cost single layer PCB
  • AC Input voltage from 90Vrms to 264Vrms
  • Regulated 12VDC typical output
  • Full-load power of 168W, or full-load current of 14A
  • High efficiency
  • Optimized low power features enable extremely low-standby power
  • Advanced burst mode with burst soft-on and soft-off for minimized audible noise
  • X-capacitor discharge
  • Test points to facilitate device and topology evaluation

Required Equipment

  • AC Voltage Source
    • Capable of single-phase output AC voltage 85 to 265VAC, 47 to 63Hz, adjustable, with minimum power rating 100W and current limit function
    • The AC voltage source to be used should meet IEC 60950 reinforced insulation requirement
  • DC Digital Multimeter
    • One unit capable of 0VDC to 450VDC input range, four-digit display preferred
    • One unit capable of 0VDC to 20VDC input range, four-digit display preferred
  • Output Load
    • DC load capable of receiving 0VDC to 20VDC, 0A to 14A, and 0W to 300W or greater, with the capability to display information such as load current and load power
  • Oscilloscope
    • Capable of 500MHz full bandwidth, digital or analog (if digital, 5Gsps, or better)
  • Fan
    • 200 to 400LFM forced air cooling is recommended, but not required
  • Recommended Wire Gauge
    • Capable of 25A, or better than #14 AWG, with the total length of the wire to be less than 8 feet (4 feet input and 4 feet return)

Applications

  • Industrial AC-DC adapters
  • Power tools
  • Medical power supply
  • Multi-functional printer
  • Enterprise and cinema projector
  • PC power supply
  • Gaming console power supply

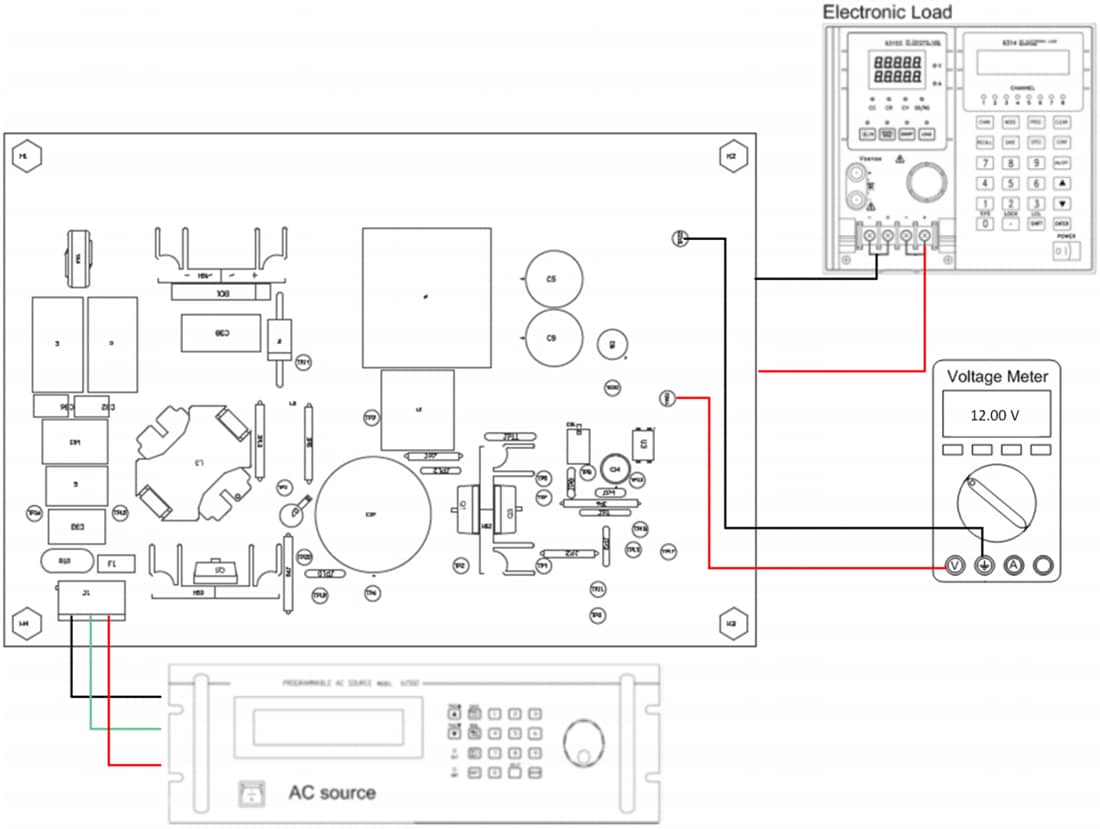

Test Setup

Mechanical Drawing - Texas Instruments PFCLLCSREVM034 AC to Isolated DC Evaluation Module
