Texas Instruments OPA2391DSBGAEVM Evaluation Module permits users to plug the OPA2391YBJ into an existing socketed PDIP test platform to demonstrate the OPA2391. Additionally, the enable pin is carried out to a test point on the top layer to utilize the OPA2391 enable function.

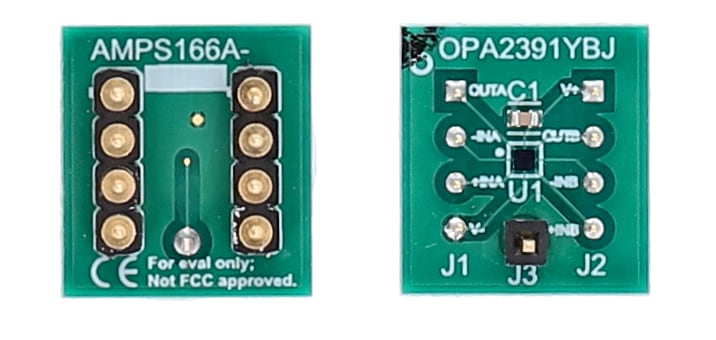

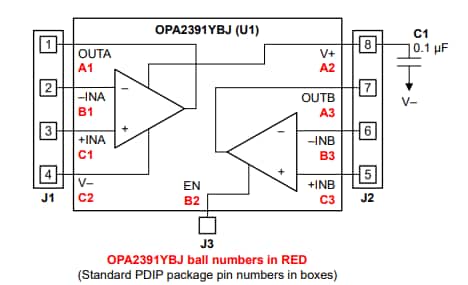

The TI OPA2391DSBGAEVM evaluation module transforms the compact dual DSBGA package into an easy-to-use, standard, dual, 300-mil-wide, PDIP operational amplifier footprint. The enable (EN) pin, which is not found on a common PDIP package, is wired to a separate test point and authorizes evaluation of the enable function. The PCB can be used in a standard, dual-amplifier PDIP socket or as individual connections to each bump on the OPA2391YBJ.
