Texas Instruments LP5860TEVM Evaluation Module

Texas Instruments LP5860TEVM Evaluation Module is an evaluation module (EVM) to test the performance of the LP5860T LED matrix driver. The LP586x graphical user interface (GUI) is used to interface with USB2ANY to the LP5860TEVM. The TI LP5860TEVM implements SPI and I2C inputs via the USB2ANY interface adapter.

Features

LP5860T 11 x 18 LED high-current matrix driver
8-bit analog and 8-bit or 16-bit PWM dimming
LP586x GUI is used to control the EVM

SPI, I²C, Vsync, IFS, EN signal input from USB2ANY interface adapter

Applications

Gaming keyboard
Major and smart home appliance
Outdoor keypad backlighting

IR module for video surveillance and IP camera
Laser diode in the optical module

Kit Contents

LP5860T evaluation module
USB2ANY interface adapter with ribbon cables and USB cable

Texas Instruments LP5860TEVM Evaluation Module

Features

Applications

Kit Contents

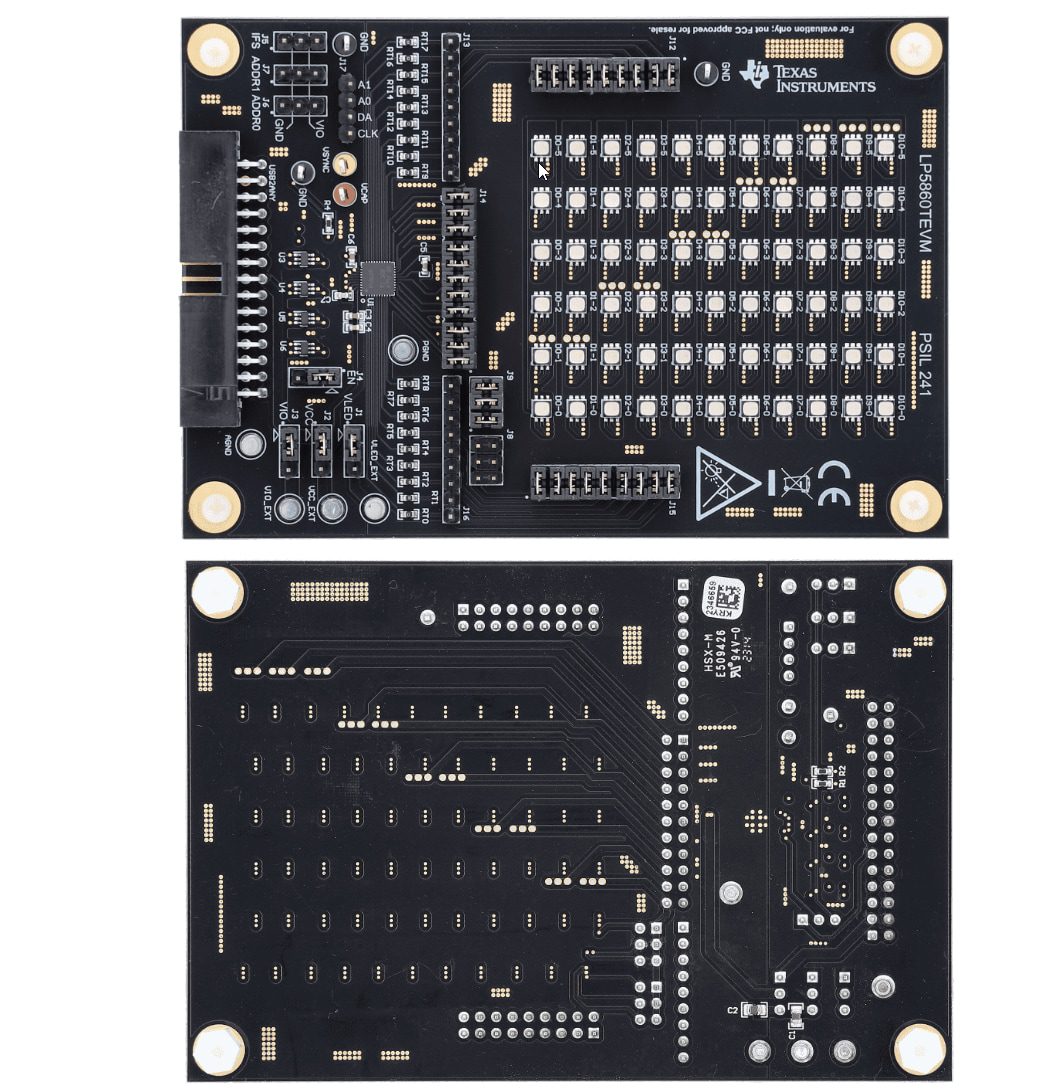

Layout

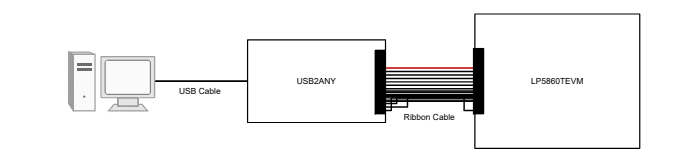

Hardware Connection

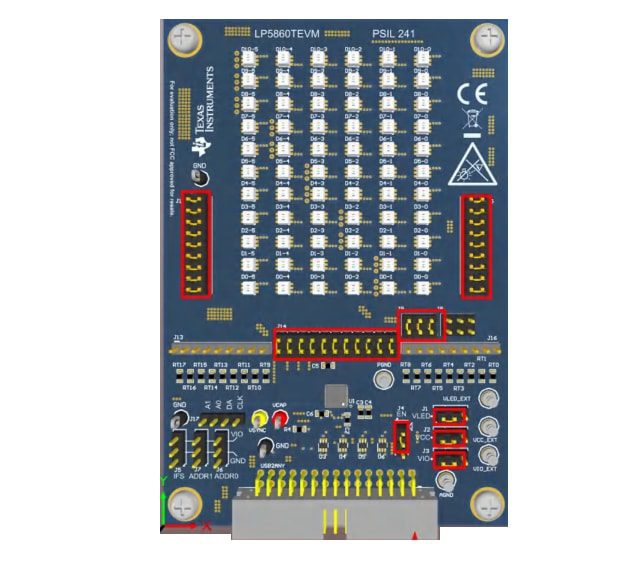

Default Jumper Setting
