Texas Instruments LMX2594PSEVM Synthesizer Evaluation Module

Texas Instruments LMX2594PSEVM Synthesizer Evaluation Module (EVM) is a platform for evaluating the phase-synchronization (PS) feature of the LMX2594 wideband RF synthesizer. LMX2594PSEVM contains two LMX2594 parts that share the same reference clock.

After phase synchronization, the phase of the parts’ outputs can be measured and compared. The Texas Instruments LMX2594PSEVM also contains a radio-frequency (RF) power combiner, combining two phase-synchronized outputs into a single output with reduced phase noise.

Features

Two LMX2594 on board share the same reference clock and SYNC signal
Extremely short RF output traces eliminate PCB trace-length deskew

Independent low-dropout (LDO) power supply eliminates crosstalk through power-supply lines
Supports reduced phase noise verification with onboard RF-power combiner

Kit Contents

LMX2594PSEVM evaluation module
Reference Pro board (SV601349)

USB cable
10-pin ribbon cable

Required Equipment

A DC power supply
A spectrum analyzer or a signal analyzer
A PC running Windows® 7 or a more recent version
An oscilloscope

A high-quality signal generator
Texas Instruments Clocks and Synthesizers TICS Pro software
Texas Instruments PLLatinum™ Simulator Tool (optional)

Texas Instruments LMX2594PSEVM Synthesizer Evaluation Module

Features

Kit Contents

Required Equipment

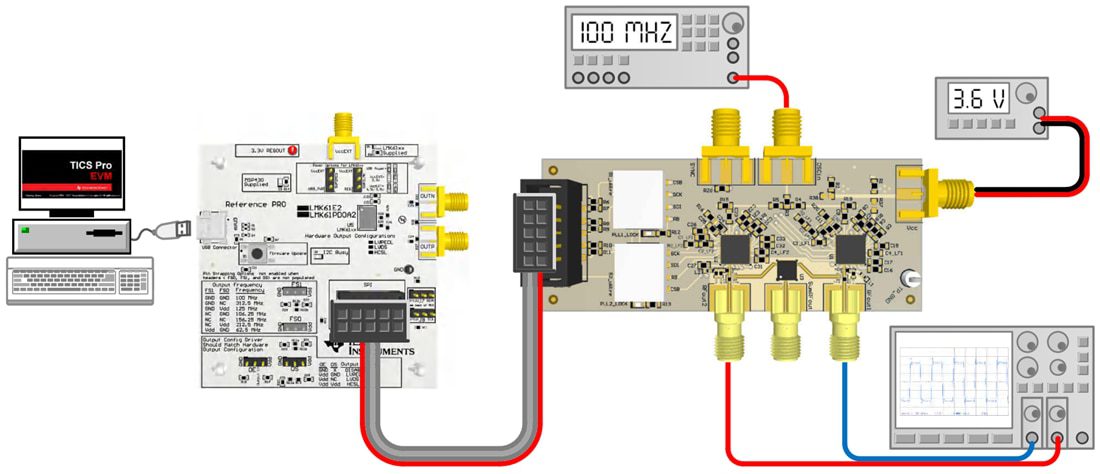

Test Setup
