Texas Instruments LMR51606EVM Evaluation Module

Texas Instruments LMR51606EVM Evaluation Module facilitates the evaluation of the LMR51606 step-down converter. The fully assembled and tested circuit offers a 3.3V output with a wide input range of up to 65V, 0.6A loading current, and an internal fixed frequency. Additionally, the TI LMR51606EVM Evaluation Module has AC signal injection terminals for loop measurements.

Features

  • 4V to 65V input voltage range
  • 3.3V output
  • Up to 0.6A output current
  • Switching frequency 1100kHz

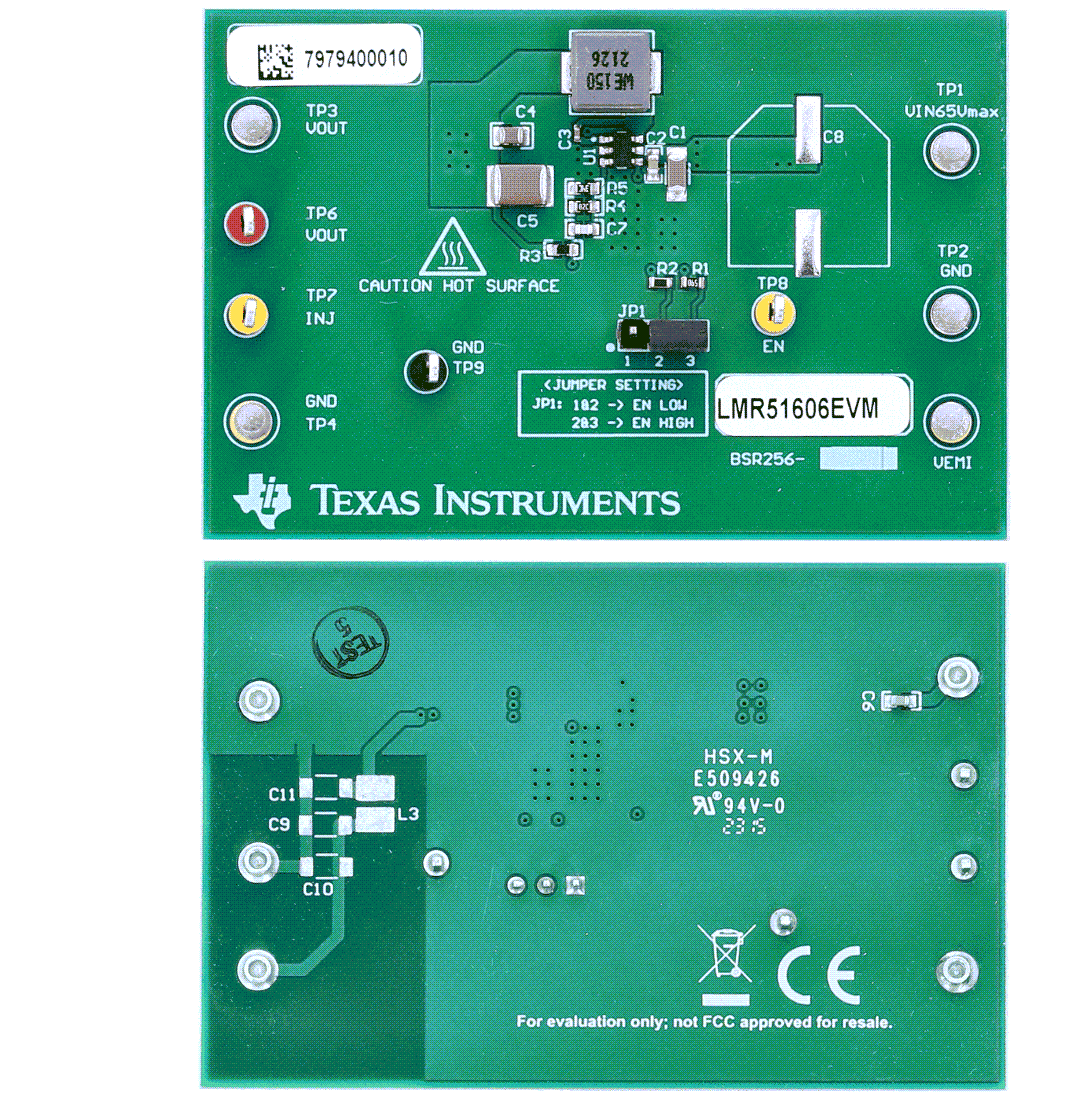

Layout

Location Circuit - Texas Instruments LMR51606EVM Evaluation Module
