Texas Instruments LMQ62440EVM Converter Evaluation Module (EVM)

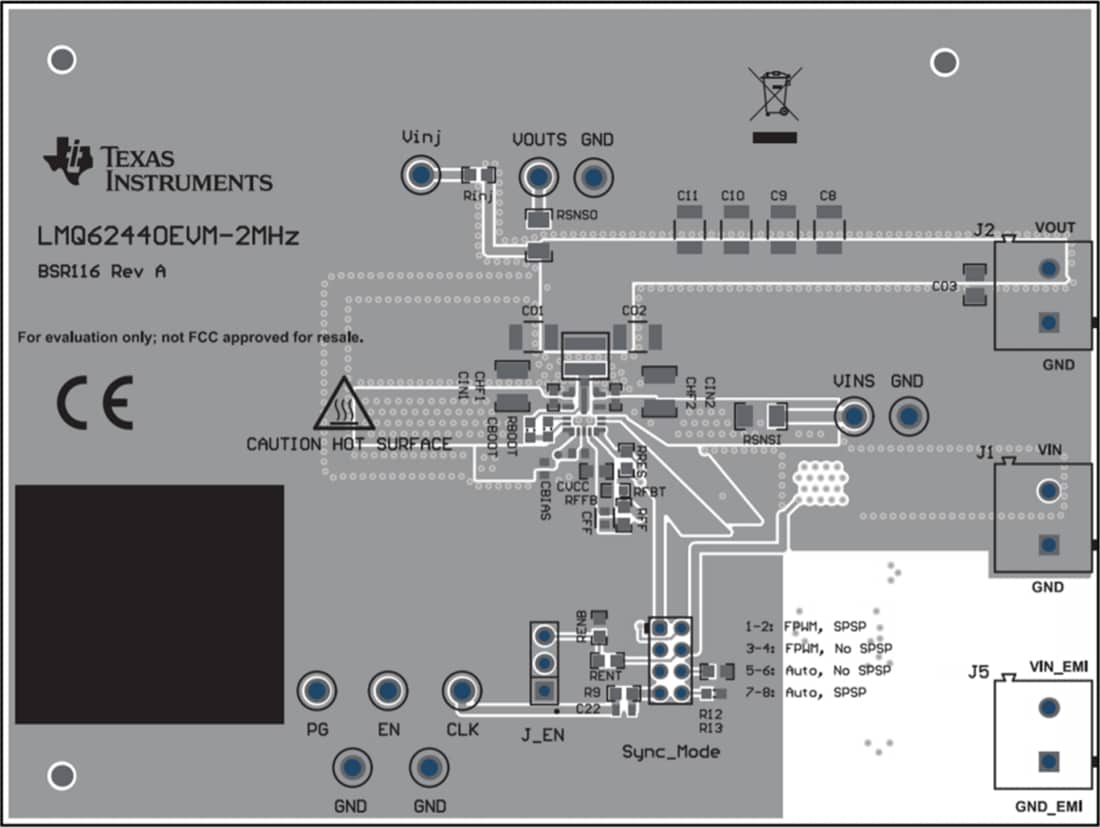

Texas Instruments LMQ62440EVM Converter Evaluation Module (EVM) is a fully assembled and tested circuit for evaluating the LMQ62440 synchronous step-down converter. The LMQ62440 provides exceptional efficiency, low Iq, and low EMI in a small solution size with integrated capacitors. This evaluation module implements the LMQ62440-Q1 in a 14-pin wettable flank Hotrod™ package (VQFN-HR). The LMQ62440-Q1 is capable of delivering up to 4A with exceptional efficiency and output accuracy in a very small solution size. The Texas Instruments LMQ62440EVM is optimized for EMI and thermal performance in a reasonable fashion, such that the layout practices can be replicated in the user’s application.
