Texas Instruments LAUNCHXL-F28P65X LaunchPad™ Development Kit

Texas Instruments LAUNCHXL-F28P65X LaunchPad™ Development Kit is based on the C2000™ RealTime Microcontroller series of F28P65x devices. The LAUNCHXL-F28P65X is developed around the TMS320F28P650DK9 real-time MCU and emphasizes the control, analog, and communications peripherals, as well as the integrated nonvolatile memory.

The TI LAUNCHXL-F28P65X LaunchPad Kit offers two independent BoosterPack XL expansion connectors (80-pins), a dedicated 12-bit/16-bit differential ADC header, an onboard Controller Area Network (CAN) transceiver supporting both standard CAN (DCAN) and CAN-FD (MCAN), two 5V encoder interface (eQEP) connectors, FSI connector, EtherCAT connector, power-domain isolation, and an onboard XDS110 debug probe.

Features

TMS320F28P650DK9 200MHz dual C28x CPU with FPU and TMU, 200MHz dual CLA, 1.28MB Flash, 3x 16-bit or 12-bit ADCs, 36x PWM channels, CAN (DCAN), 6x encoder modules (eQEP), UART, and more
Onboard XDS110 debug probe for real-time debug and flash programming

80-pin LaunchPad leveraging the BoosterPack ecosystem
Power domain isolation for real-time debug and flash programming
Onboard CAN transceiver and connector
EtherCAT PHYs and RJ45 connectors
Two encoder interface (eQEP) connectors

Kit Contents

C2000 F28P65x Series LaunchPad development board (LAUNCHXL-F28P65X)
USB Type-A male to USB Type-C™ male cable

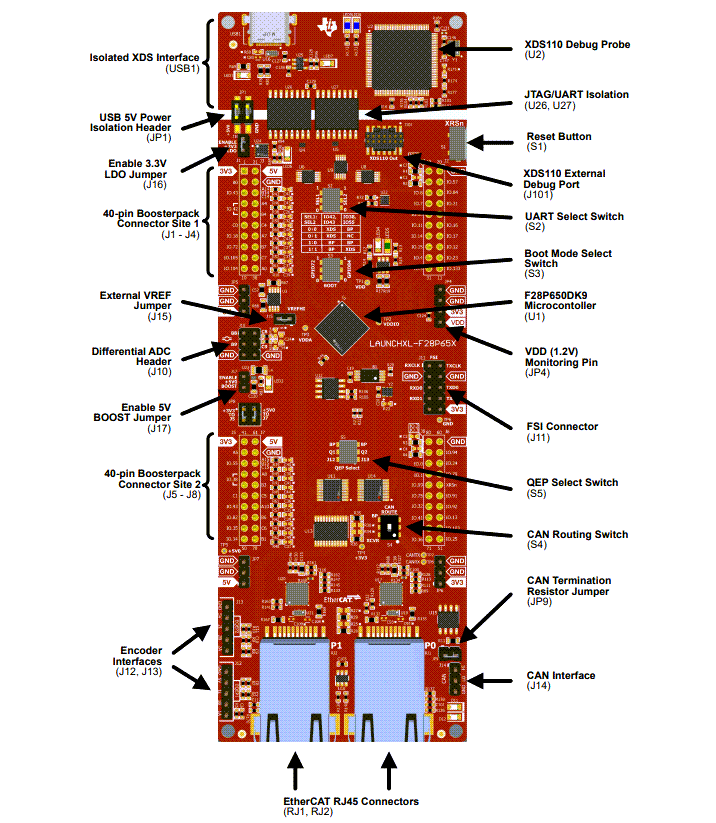

Pinout Map
