Texas Instruments ISOW7741DFMEVM Evaluation Module

Texas Instruments ISOW7741DFMEVM Evaluation Module is designed to quickly and easily demonstrate the ISOW774x in a 20-Pin WB SOIC package (Package Code-DFM). The ISOW774x is a quad-channel high-performance, 5000V_RMS reinforced digital Isolators with integrated high-efficiency and low-emissions DC-DC converter.

Features

High-performance, 5000V_RMS reinforced quad-channel digital isolators with integrated high-efficiency, low-emissions DC-DC converter
Separate IO and DC/DC supply inputs

1.71V to 5.5V Wide supply and level translation range for IO
High signaling rate of up to 100Mbps
Isolation barrier life >40 Years

Texas Instruments ISOW7741DFMEVM Evaluation Module

Features

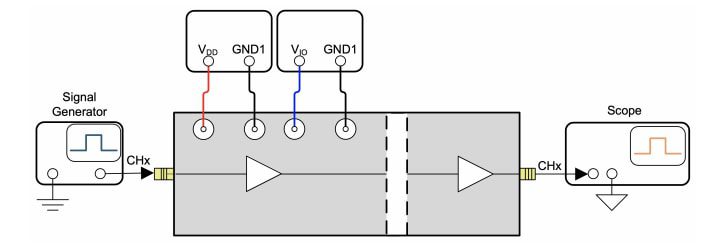

Typical test setup

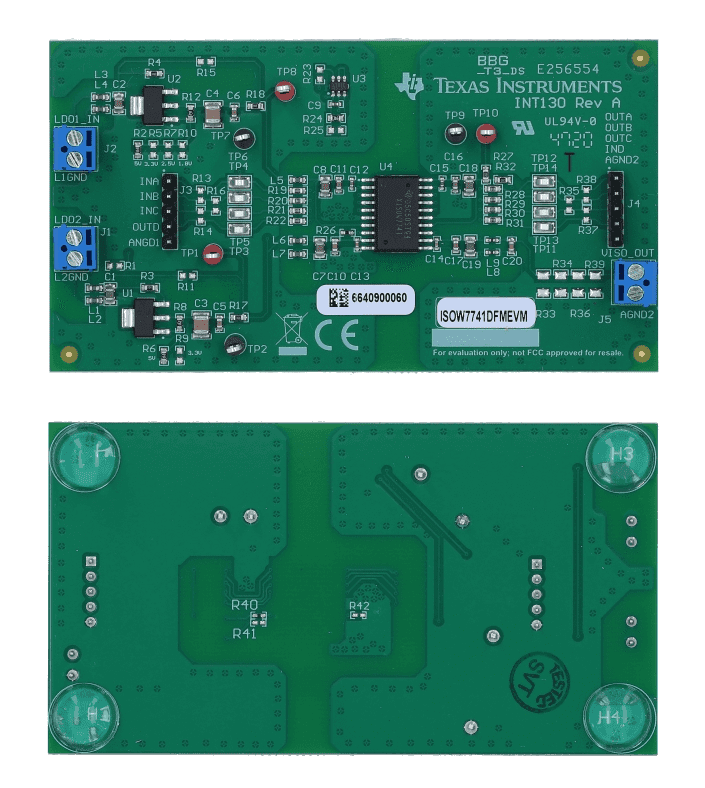

Layout
