Texas Instruments ISO1640EVM Evaluation Module

Texas Instruments ISO1640EVM Evaluation Module is configured to evaluate the operation of the ISO1640 and ISO1641 Isolated I²C Transceivers. The ISO1640 and ISO1641 Isolated I²C Transceivers in 8-pin D and 16-pin DW packages allow the ISO1640EVM to analyze data transmission systems.

The TI ISO1640EVM Evaluation Module can be used to evaluate different system parameters of ISO1640 and ISO1641 devices. Test signals and sequences can be applied to the device channels to assess performance characteristics of parameters such as propagation delay, rise/fall times, and power consumption for different device conditions.

Features

For evaluation of ISO1640 and ISO1641 devices in D and DW packages
3V to 5.5V on Side 1 and 2.25V to 5.5V on side 2 supply voltage and level translation range

Isolated, bidirectional, I²C-compatible communication
Test points and headers for standalone evaluation or evaluation with larger systems
Isolation barrier life >40 years

Texas Instruments ISO1640EVM Evaluation Module

Features

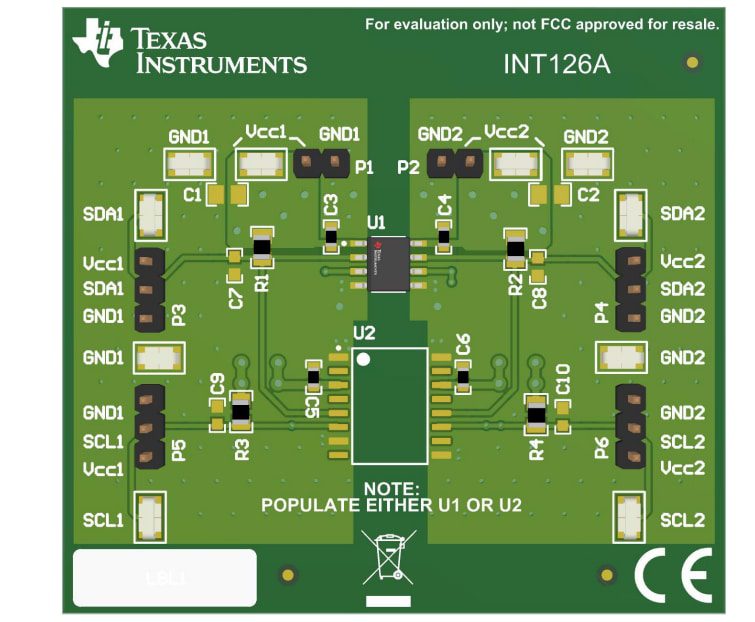

Board Layout

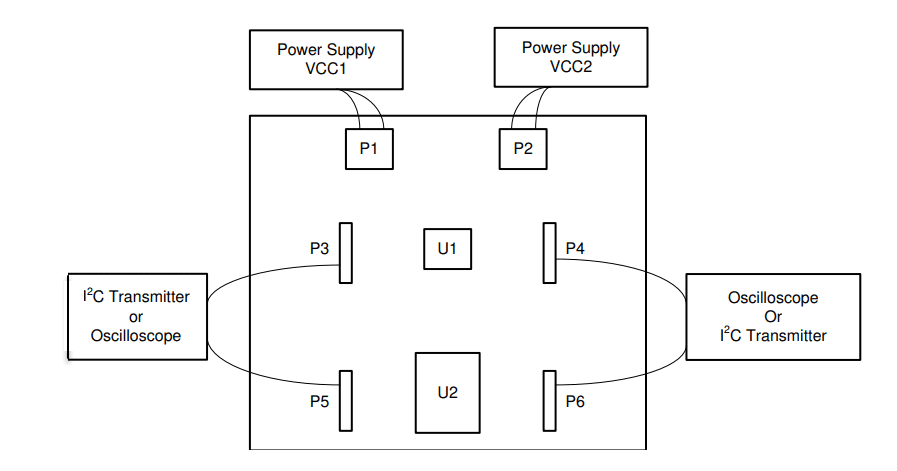

Basic EVM Operation

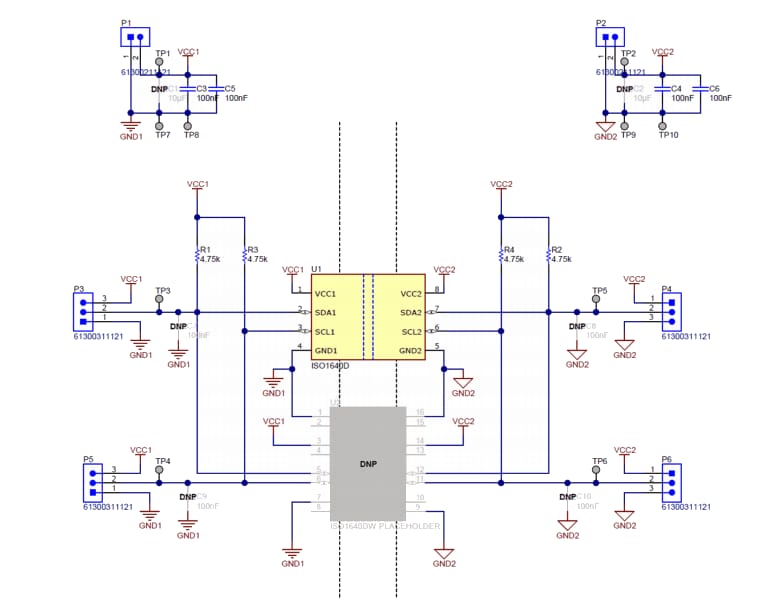

Schematic
