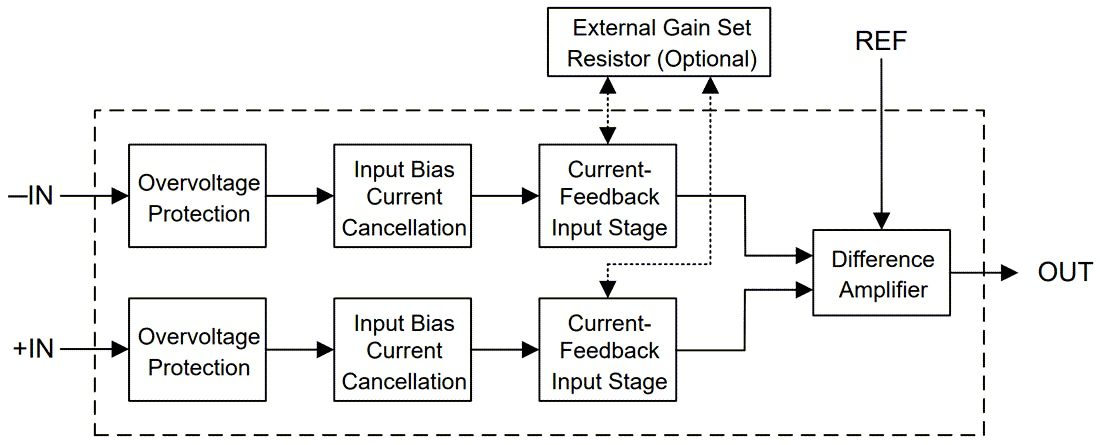

Texas Instruments INA823 Precision Instrumentation Amplifiers offer low power consumption and operate over a wide, single-supply, or dual-supply range. A single external resistor sets any gain from 1 to 10,000. The device provides low input offset voltage, low offset voltage drift, low input bias current, and low current noise while remaining cost-effective. Additional circuitry protects the inputs against overvoltage up to ±60V.
The Texas Instruments INA823 is optimized to provide a high common-mode rejection ratio. At G = 1, the common-mode rejection ratio exceeds 84dB across the full input common-mode range. The INA823 has a wide common-mode voltage range as low as 150mV below negative supply. The device is designed for low-voltage operation from a 2.7V single supply and dual supplies up to ±18V. The low power and single-supply operation enable hand-held, battery-operated systems.
