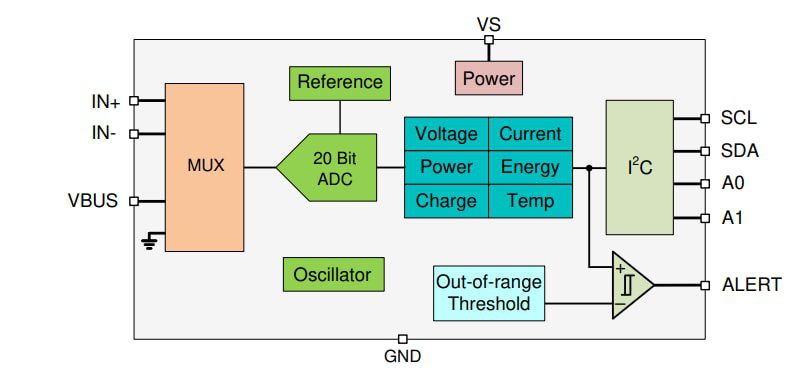

Texas Instruments INA228/INA228-Q1 Ultra-Precise Power/Energy/Charge Monitors include a 20-bit delta-sigma ADC and is specifically designed for current-sensing applications. The INA228 measures a full-scale differential input of ±163.84mV or ±40.96mV, across a resistive shunt sense element with common-mode voltage support from –0.3V to +85V.
The TI INA228/INA228-Q1 Ultra-Precise Power/Energy/Charge Monitors report current, bus voltage, temperature, power, energy, and charge accumulation while implementing a precision ±0.5% integrated oscillator, all while performing the needed calculations in the background. The integrated temperature sensor is ±1°C accurate for die temperature measurement and is useful in monitoring the ambient system temperature.
The INA228/INA228-Q1 allows for selectable ADC conversion times from 50µs to 4.12ms and sample averaging from 1x to 1024x, which further helps reduce the noise of the measured data.
