Texas Instruments DS90UB953-Q1EVM Serializer Evaluation Module

Texas Instruments DS90UB953-Q1EVM Serializer Evaluation Module (EVM) helps the user evaluate the operation and performance of the DS90UB953-Q1 2MP MIPI® CSI-2 FPD-Link III serializer (SER). The Texas Instruments DS90UB953-Q1 translates data from up to 4 MIPI CSI-2 lanes at 830Mbps each to transport data into a high-speed serialized FPD-Link III interface over a single 50Ω coax cable.

Features

MIPI D-PHY / CSI-2 version 1.1 compliant
The system interface supports sensor CSI data transmission at up to 3.2Gbps
Supports sensor CSI data transmission at up to 3.32Gbps

Coax cable and power-over coax supported
Multi-camera synchronization and monitoring and reporting for diagnostics
Compatible with DS90UB954, DS90UB960, DS90UB964 and DS90UB934 Deserializer evaluation module

Required Equipment

DS90UB954-Q1EVM (or variant)
One DACAR/FAKRA coax cable
DC power supply for DS90UB954-Q1EVM (or variant) only
Power supply cables (for example, banana to coax, banana to grabber, and so forth)

Two male USB-to-mini USB cables
USB2ANY or an Aardvark I²C/SPI Host Adapter
Analog LaunchPAD software (this software is not required if an external ECU is used)

Texas Instruments DS90UB953-Q1EVM Serializer Evaluation Module

Features

Required Equipment

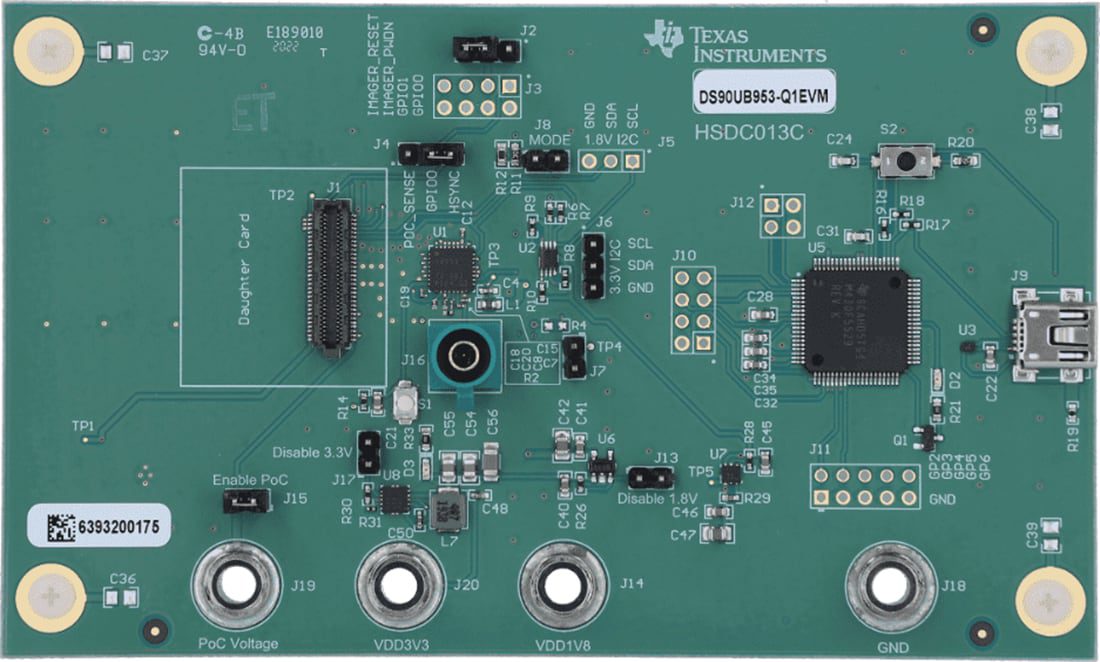

Board Layout
