Texas Instruments DRV8935 Quad Half-Bridge Drivers

Texas Instruments DRV8935 Quad Half-Bridge Drivers are designed for driving up to four solenoid loads, two DC motors, one stepper motor, or additional loads. The output stage for each channel is comprised of N-channel power MOSFETs configured in a half-bridge. Easy interface with the controller is enabled via a simple PWM interface.

The TI DRV8935 Drivers operate off a single power supply and support a wide input supply range from 4.5V to 33V. The DRV8935 supplies up to 2.5A peak or 1.75A RMS output current per channel (dependent on PCB design). A low-power sleep mode is offered to achieve a low quiescent current draw by shutting down much of the internal circuitry.

Protection functions on the device include undervoltage-lockout, overcurrent protection on each FET, short circuit protection, and overtemperature. Fault conditions are indicated by the nFAULT pin.

Features

  • Quad half-bridge driver
    • Can drive up to four solenoid loads, two DC motors, one stepper motor, or other loads
  • Integrated current sensing and regulation
  • 4.5V to 33V Operating supply voltage range
  • Low RDS(ON): 330mΩ HS + LS at 24V, 25°C
  • 2.5A Maximum drive current at 24V, 25°C
  • Pin to pin compatible with –
    • 33V, 900mΩ HS + LS DRV8932
    • 48V, 330mΩ HS + LS DRV8955
  • Small package and footprint
  • Supports 1.8V, 3.3V, 5.0V logic inputs
  • Configurable off-time PWM chopping
    • 7, 16, 24 or 32µs
  • Low-current sleep mode (2µA)
  • Spread-spectrum clocking for low electromagnetic interference (EMI)
  • Protection features
    • VM undervoltage lockout (UVLO)
    • Charge pump undervoltage (CPUV)
    • Overcurrent protection (OCP)
    • Thermal shutdown (OTSD)
    • Fault condition output (nFAULT)

Applications

  • Refrigerator damper and ice maker
  • Textile machines
  • Office and home automation
  • Factory automation and robotics
  • Washers, dryers, and dishwashers
  • Gaming machines
  • General purpose solenoid loads

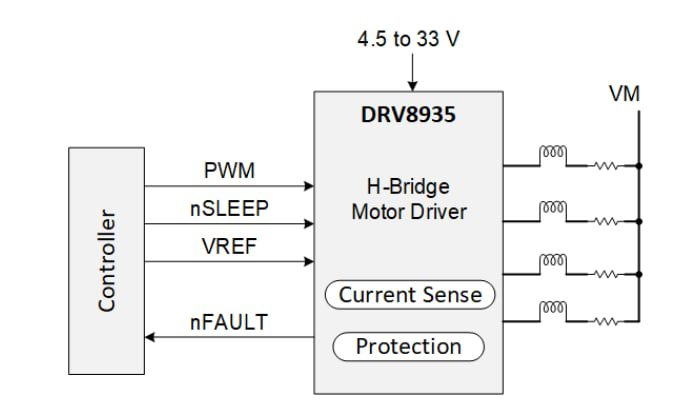

Simplified Schematic

Schematic - Texas Instruments DRV8935 Quad Half-Bridge Drivers
