Texas Instruments DRV8932 Quad Independent Half-Bridge Drivers

Texas Instruments DRV8932 Quad Independent Half-Bridge Drivers provides four half-bridge drivers for industrial applications. The device can be used for driving up to four solenoid loads, two DC motors, one stepper motor, or other loads. The output stage for each channel consists of N-channel power MOSFETs configured in a half-bridge. A simple PWM interface allows easy interface with the controller. The Texas Instruments DRV8932 operates off a single power supply and supports a wide input supply range from 4.5V to 33V. The DRV8932 can supply up to 1.5A peak or 1.05A RMS output current per channel (dependent on PCB design).

A low-power sleep mode is provided to achieve a low quiescent current draw by shutting down much of the internal circuitry. Internal protection functions are provided for undervoltage-lockout, overcurrent protection on each FET, short circuit protection, and overtemperature. Fault conditions are indicated by the nFAULT pin.

Features

Quad half-bridge driver
- Can drive up to four solenoid loads, two DC motors, one stepper motor, or other loads
Integrated current sensing and regulation
4.5V to 33V operating supply voltage range
Low RD_S(ON) (900mΩ HS + LS at 24V, 25°C)
1.5A maximum drive current at 24V, 25°C
Pin to pin compatible with
- DRV8955 (48V, 330mΩ HS + LS)
- DRV8935 (33V, 330mΩ HS + LS)
Configurable off-time PWM chopping
- 7, 16, 24 or 32µs

Supports 1.8V, 3.3V, 5.0V logic inputs
Low-current sleep mode (2µA)
Spread-spectrum clocking for low electromagnetic interference (EMI)
Small package and footprint
Protection features
- VM undervoltage lockout (UVLO)
- Charge pump undervoltage (CPUV)
- Overcurrent protection (OCP)
- Thermal shutdown (OTSD)
- Fault condition output (nFAULT)

Applications

Refrigerator damper and ice maker
Textile machines
Office and home automation
Factory automation and robotics

Gaming machines
Washers, dryers, and dishwashers
General purpose solenoid loads

Texas Instruments DRV8932 Quad Independent Half-Bridge Drivers

Features

Applications

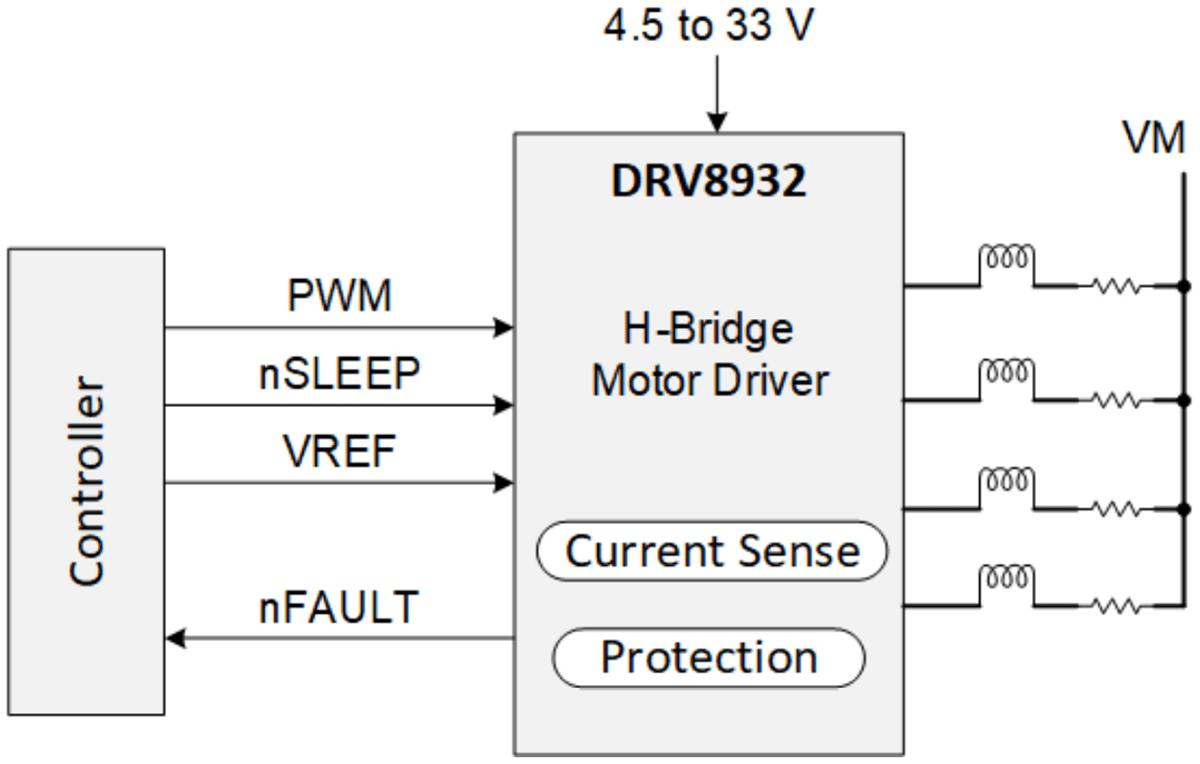

Simplified Schematic
